TD351

批量生产
Design Win

先进的IGBT/MOSFET驱动器

下载数据手册 Order Direct

产品概述

描述

This device is an advanced gate driver for IGBT and power MOSFETs. Control and protection functions are included and allow the design of high reliability systems.

The innovative active Miller clamp function eliminates the need for negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver.

The TD351 includes a two-level turn-off feature with adjustable level and delay. This function protects against excessive overvoltage at turn-off in case of overcurrent or short-circuit conditions. The same delay is applied at turn-on to prevent pulse width distortion.

The TD351 is compatible with both pulse transformer and optocoupler signals.

  • 所有功能

    • 1.7 A sink / 1.3 A source (typ) current capability
    • Active Miller clamp feature
    • Two-level turn-off with adjustable level and delay
    • Input compatible with pulse transformer or optocoupler
    • UVLO protection
    • 2 kV ESD protection

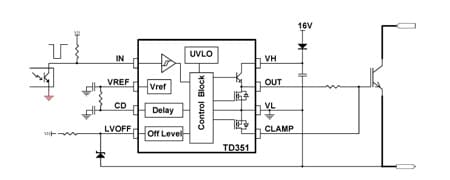

电路原理图

EDA符号、封装和3D模型

STMicroelectronics - TD351

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
TD351ID
批量生产
SO-8 工业 Ecopack1
TD351IDT
批量生产
SO-8 工业 Ecopack1

TD351ID

Package:

SO-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack1

TD351IDT

Package:

SO-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
