产品概述
描述
The STCS1 is a BiCMOS constant current source designed to provide a precise constant current starting from a varying input voltage source. The main target is to replace discrete components solution for driving LEDs in low voltage applications such as 5 V, 12 V or 24 V giving benefits in terms of precision, integration and reliability.
The current is set with external resistor up to 1.5 A with a ± 10 % precision; a dedicated pin allows implementing PWM dimming.
An open-drain pin output provides information on load disconnection condition.
-
所有功能
- LED disconnection diagnostic
- Up to 40 V input voltage
- Up to 1.5 A output current
- Less than 0.5 V voltage overhead
- Shutdown pin
- PWM dimming pin

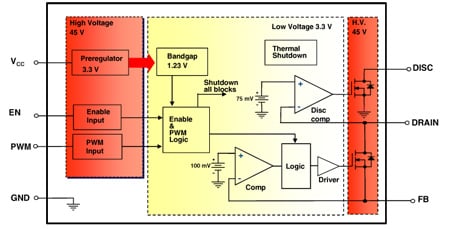

电路原理图
特别推荐
EDA符号、封装和3D模型
意法半导体 - STCS1
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | 材料声明** |
|---|---|---|---|---|---|
| STCS1PHR | 批量生产 | PowerSO-8 | 工业 | Ecopack2 | |
| STCS1PUR | 批量生产 | QFN-8L P 0.5 mm | 工业 | Ecopack2 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| STCS1PHR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| STCS1PUR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
STCS1PHR 批量生产
STCS1PUR 批量生产
