L6398

批量生产
Design Win Education

高压高侧和低侧驱动器

下载数据手册 Order Direct

产品概述

描述

The L6398 is a high voltage device manufactured with the BCD™ “offline” technology. It is a single- chip half bridge gate driver for the N-channel power MOSFET or IGBT.

The high-side (floating) section is designed to stand a voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible down to 3.3 V for the easy interfacing microcontroller/DSP.

  • 所有功能

    • High voltage rail up to 600 V
    • dV/dt immunity ± 50 V/ns in full temperature range
    • Driver current capability:
      • 290 mA source
      • 430 mA sink
    • Switching times 75/35 ns rise/fall with 1 nF load
    • 3.3 V, 5 V TTL/CMOS input comparators with hysteresis
    • Integrated bootstrap diode
    • Fixed 320 ns deadtime
    • Interlocking function
    • Compact and simplified layout
    • Bill of material reduction
    • Flexible, easy and fast design

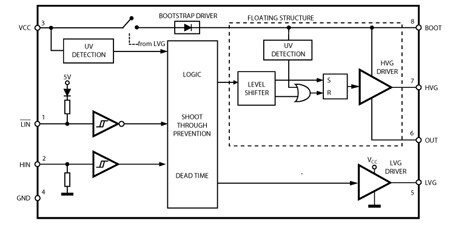

电路原理图

您可能还会喜欢...

EDA符号、封装和3D模型

意法半导体 - L6398

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
L6398D
批量生产
SO-8 工业 Ecopack2
L6398DTR
批量生产
SO-8 工业 Ecopack2

L6398D

Package:

SO-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

L6398DTR

Package:

SO-8

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-8

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
