产品概要
描述
The L4941 is a three terminal 5V positive regulators available in TO-220 and DPAK packages, making it useful in a wide range of industrial and consumer applications. Thanks to its very low input/output voltage drop, these devices are particularly suitable for battery powered equipments, reducing consumption and prolonging battery life. It employs internal current limiting, antisaturation circuit, thermal shut-down and safe area protection.
-
性能一览
- Low dropout voltage (450mV typ. at 1A)
- Thermal shutdown
- Very low quiescent current
- Reverse polarity protection
- Short circuit protection

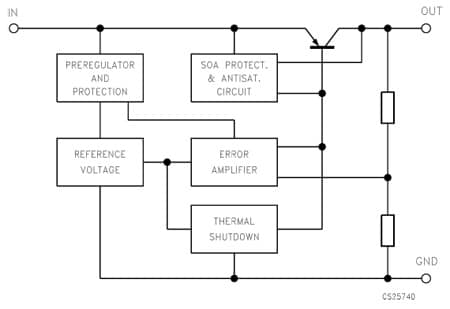

电路原理图
特别推荐
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L4941
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| L4941BDT-TR | Active 产品已量产 | DPAK | Industrial | Ecopack2 | - | - | |
| L4941BV | Active 产品已量产 | TO-220 | Industrial | Ecopack2 | - | - | |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | Grade | Output Voltage (V) (nom) | Output Tolerance (typ) | Output Current (A) (nom) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||||||
| L4941BV | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
| |||||||||||
| L4941BDT-TR | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
| |||||||||||
L4941BV Active
L4941BDT-TR Active
