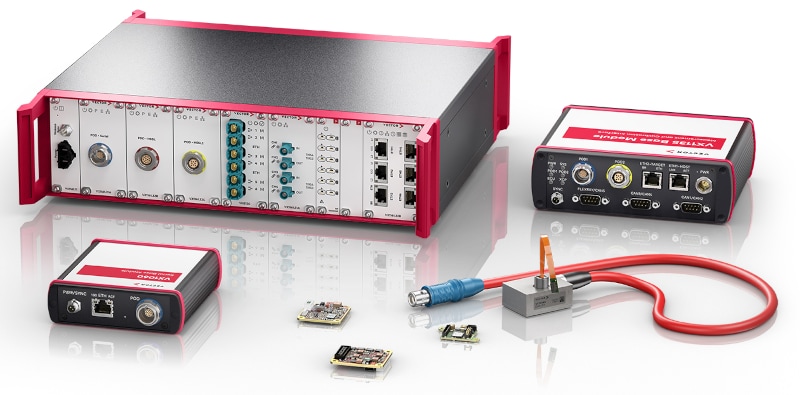

The VX1000 hardware enables measurement and calibration tools such as CANape to access ECUs with high performance and marginal impact on runtime. It is designed for use in vehicles but can also be used on test benches and in the laboratory. Thanks to its high scalability and broad portfolio, the VX1000 hardware offers the right solution for every use case.

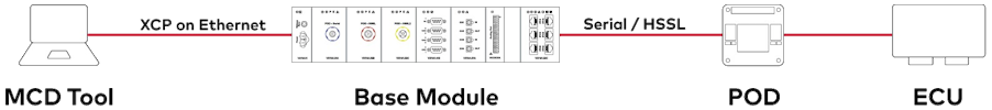

The system consists of two main components, the Base Module and the Plug-On Device.

The VX1000 family supports the Stellar Family through:
- SWD with up to 75 MHz
- AURORA with up to 3.125 Gbps on each 1 or 2 lanes

JTAG, SWD and Nexus-Aux are further interfaces of the most popular controllers which the VX1000 supports directly.
General VX1000 features:
- ETH based high bandwidth connection between Base Module and PC
- Very small and very high robustness of POD for in-vehicle use
- Simple getting started
- Freely available and performant embedded driver for synchronous data acquisition
- High precision synchronization through IEEE 1588 PTP
- Very fast measurement cycles of up to 100 kHz
- XCP Debugging
- Flashing

| 支持的器件 | SPC5,Stellar E,Stellar G,Stellar P |
