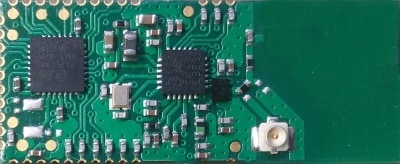

SIGFOX-MOD1-C / -E are certified transceiver modules designed for integration with the Sigfox network. These modules target IoT sensor devices and low-power, battery-operated applications. The modules support direct sensor interfacing and AT-command control, which enables rapid deployment and cost-effective solutions. Built on STMicroelectronics STM32L051 and S2-LP platforms, the modules deliver reliable wireless connectivity and help reduce the bill of materials. This enhances value for developers in the ST ecosystem.
Features and benefits
- Certified for operation within the Sigfox network
- Transceiver capability with uplink and downlink support
- Integrated high-efficiency ceramic chip antenna
- Supply voltage range from 1.8 V to 3.3 V
- Operating temperature from -20 °C to +70 °C (extended range available)
- RF power output up to +16 dBm
- Receiver sensitivity (≤ -124 dBm)
- Average transmit current (12.2 mA at 3.3 V, 12-byte payload)
- Compact dimensions (37.6 mm × 15 mm × 3.8 mm)
- AT-command interface for integration and sensor expansion
SIGFOX-MOD1-C

SIGFOX-MOD1-E

| 支持的器件 | STM32L0 |
| Device Type | 集成模组 |
| 地点 |
Served Countries:
南非, 欧洲
