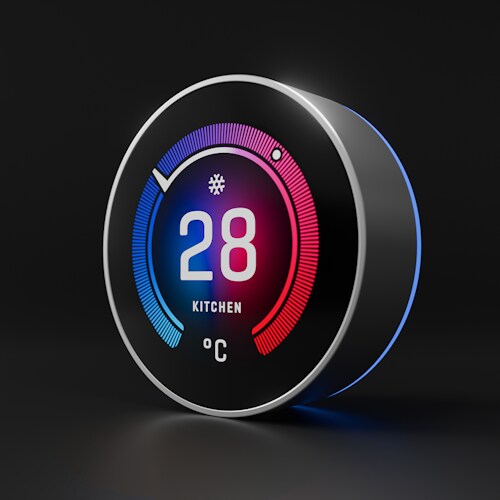

1.3-inch round smart module knob display
Circular display with rotary switch featuring STM32 microcontroller
The TSD 1.3-inch round smart module knob display is a compact and versatile interface solution designed for intuitive control and clear visual feedback. Featuring a high-resolution circular display integrated with a rotary knob, this smart module is ideal for applications requiring precise user input and dynamic information presentation. Its sleek design and robust functionality make it suitable for industrial controls, consumer electronics, and smart devices. Enhance your product’s user experience with this innovative, easy-to-integrate smart display knob.
Additional materials
- Create modern GUI for small interactive displays
- Video Demo: STM32C0 entry-level graphics on TSD knob display
- Guide et presentations: How to get started with TSD Knob Display and TouchGFX
- Guide et presentations: Upgrade your segment display
- Tutorial: Creating an Application for TSD knob display
- Blog: STM32C0, TouchGFX, and a knob display show why entry-level graphics are showing up everywhere
Features and Benefits
- Knob display with encoder from Team Source Display
- 1.28 inches 240 x 240 SPI
- STM32C091 - 256KB flash, 36KB RAM
- 64Mbit SPI flash
Key benefits:
- Plug and play: Designed for plug-and-play operation, simplifying integration and reducing development time
- Ease of use: The integrated module simplifies the overall design process
- Reduced development time: Pre-integrated hardware and software components accelerate development cycles
- Versatility: Suitable for a wide range of applications due to various display sizes and touch capabilities
- TouchGFX integration: Supported out of the box in TouchGFX, ready for customization of your GUI application
