产品概述
描述
The L6480 device, realized in analog mixed signal technology, is an advanced fully integrated solution suitable for driving two-phase bipolar stepper motors with microstepping.
It integrates a dual full bridge gate driver for N-channel MOSFET power stages with embedded non dissipative overcurrent protection. Thanks to a unique voltage mode driving mode which compensates for BEMF, bus voltage and motor winding variations, the microstepping of a true 1/128-step resolution is achieved. The digital control core can generate user defined motion profiles with acceleration, deceleration, speed or target position easily programmed through a dedicated register set. All application commands and data registers, including those used to set analog values (i.e. current protection trip point, deadtime, PWM frequency, etc.) are sent through a standard 5-Mbit/s SPI. A very rich set of protections (thermal, low bus voltage, overcurrent and motor stall) makes the L6480 device “bullet proof”, as required by the most demanding motor control applications.
-
所有功能
- Operating voltage: 7.5 V - 85 V
- Dual full bridge gate driver for N-channel MOSFETs
- Fully programmable gate driving
- Embedded Miller clamp function
- Programmable speed profile
- Up to 1/128 microstepping
- Sensorless stall detection
- Integrated voltage regulators
- SPI interface
- Low quiescent standby currents
- Programmable non dissipative overcurrent protection
- Overtemperature protection

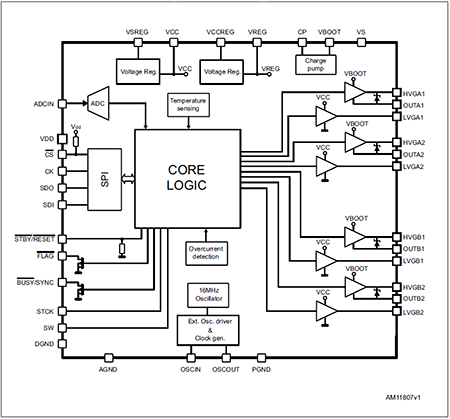

电路原理图
eDesignSuite
eDesignSuite 是一套全面且易于使用的设计辅助工具，旨在帮助您简化系统开发过程，并支持广泛的ST产品。
电源管理设计中心
组件的热电模拟器
信号调节设计工具
NFC/RFID计算器
电源设计工具
LED照明设计工具
数字电源工作台
电源树设计器
AC开关模拟器
整流二极管模拟器
STPOWER Studio
Twister Sim
TVS模拟器
Estimate
PCB热模拟器
有源滤波器
比较器
低侧电流检测
高侧电流检测
NFC电感
UHF链路预算
NFC调谐电路
您可能还会喜欢...
特别推荐
EDA符号、封装和3D模型
意法半导体 - L6480
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|
| L6480H | 批量生产 | TSSOP-38L | 工业 | Ecopack2 | 15 | 2022-01-01T00:00:00.000+01:00 | |
| L6480HTR | 批量生产 | TSSOP-38L | 工业 | Ecopack2 | 15 | 2022-01-01T00:00:00.000+01:00 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| L6480HTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L6480H | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
L6480HTR 批量生产
L6480H 批量生产
