产品概要
描述
L6258 is a dual full bridge for motor control applications realized in BCD technology, with the capability of driving both windings of a bipolar stepper motor or bidirectionally control two DC motors.
L6258 and a few external components form a complete control and drive circuit. It has high efficiency phase shift chopping that allows a very low current ripple at the lowest current control levels, and makes this device ideal for steppers as well as for DC motors.
The power stage is a dual DMOS full bridge capable of sustaining up to 34V, and includes the diodes for current recirculation. The output current capability is 1.2A per winding in continuous mode, with peak start-up current up to 1.5A. A thermal protection circuitry disables the outputs if the chip temperature exceeds the safe limits.
-
性能一览
- TTL/CMOS compatible inputs
- No need for recirculation diodes
- Thermal shutdow
- Able to drive both windings of a bipolar stepper motor or two DC motors
- Wide voltage range: 12V to 34V
- Output current up to 1.2A each winding
- Precision PWM control
- Cross conduction protection
- Four quadrant current control, ideal for microstepping and DC motor control

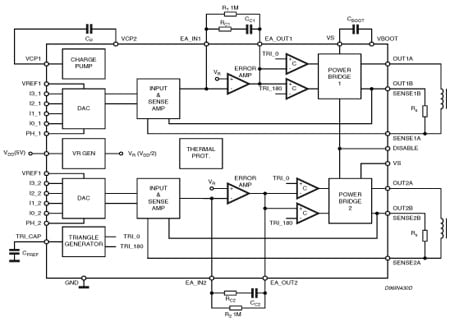

电路原理图
More from the product line
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L6258
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| E-L6258 | Active 产品已量产 | PowerSO 36 | Industrial | Ecopack2 | - | - |
E-L6258
Package:
PowerSO 36Material Declaration**:
PDF(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| E-L6258 | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
E-L6258 Active
