L6228Q

批量生产
Design Win Education

双极步进电机的L6208 DMOS驱动

下载数据手册 Order Direct

产品概述

描述

The L6228Q is a DMOS fully integrated stepper motor driver with non-dissipative overcurrent protection, realized in BCDmultipower technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device includes all the circuitry needed to drive a two-phase bipolar stepper motor including: a dual DMOS full bridge, the constant off time PWM current controller that performs the chopping regulation and the phase sequence generator, that generates the stepping sequence. Available in VFQFPN32 5 mm x 5 mm package, the L6228Q features a non-dissipative overcurrent protection on the high side power MOSFETs and thermal shutdown.

  • 所有功能

    • Operating supply voltage from 8 to 52 V
    • 2.8 A output peak current (1.4 A RMS)
    • RDS(on)0.73 Ω typ. value @ TJ = 25 °C
    • Operating frequency up to 100 kHz
    • Non dissipative overcurrent protection
    • Dual independent constant tOFF PWM current controllers
    • Fast/slow decay mode selection
    • Fast decay quasi-synchronous rectification
    • Decoding logic for stepper motor full and half step drive
    • Cross conduction protection
    • Thermal shutdown
    • Undervoltage lockout
    • Integrated fast free wheeling diodes

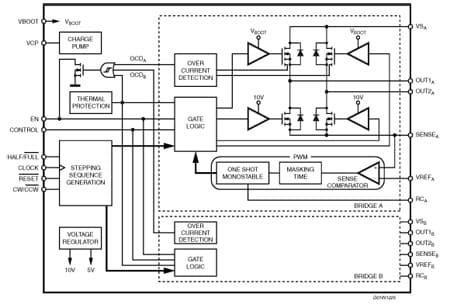

电路原理图
