产品概述
描述
The L6219R is a bipolar monolithic integrated circuits intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors.The L6219R with a few external components form a complete control and drive circuit for LS-TTL or microprocessor controlled stepper motor system.The power stage is a dual full bridge capable of sustaining 10V and including four diodes for current recirculation.
A cross conduction protection is provided to avoid simultaneous cross conduction during switching current direction.
An internal pulse-width-modulation (PWM) controls the output current to 500mA with peak start-up current up to 1A. Wide range of current control from 500mA (each bridge) is permitted by means of two logic inputs and an external voltage reference. A phase input to each bridge determines the load current direction. A thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits.
-
所有功能
- Low output saturation voltage
- Internal pwm current control
- Internal thermal shutdown
- Able to drive both windings of bipolar stepper motor
- Wide voltage range 4.5V to 10V
- Output current up to 500mA each winding
- Built-in protection diodes
- Designed for unstabilized motor supply voltage
- HAlf-step, full-step and microstepp-ing mode

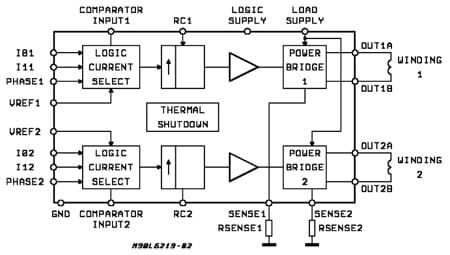

电路原理图
EDA符号、封装和3D模型
意法半导体 - L6219R
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|
| E-L6219R | 批量生产 | SO-24 | 工业 | Ecopack1 | - | - | |
| E-L6219R013TR | 批量生产 | SO-24 | 工业 | Ecopack1 | - | - |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| E-L6219R013TR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| E-L6219R | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
E-L6219R013TR 批量生产
E-L6219R 批量生产
