产品概要
描述
The L6208 device is a DMOS fully integrated stepper motor driver with non-dissipative overcurrent protection, realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device includes all the circuitry needed to drive a two phase bipolar stepper motor including: a dual DMOS full bridge, the constant off time PWM current controller that performs the chopping regulation and the phase sequence generator, that generates the stepping sequence. Available in PowerDIP24 (20 + 2 + 2), PowerSO36 and SO24 (20 + 2 + 2) packages, the L6208 device features a non-dissipative overcurrent protection on the high-side Power MOSFETs and thermal shutdown.
-
性能一览
- Operating supply voltage from 8 to 52 V
- 5.6 A output peak current (2.8 A RMS)
- RDS(ON) 0.3 Ω typ. value at Tj= 25 °C
- Operating frequency up to 100 KHz
- Non-dissipative overcurrent protection
- Dual independent constant tOFFPWM current controllers
- Fast/slow decay mode selection
- Fast decay quasi-synchronous rectification
- Decoding logic for stepper motor full and half step drive
- Cross conduction protection
- Thermal shutdown
- Undervoltage lockout
- Integrated fast freewheeling diodes

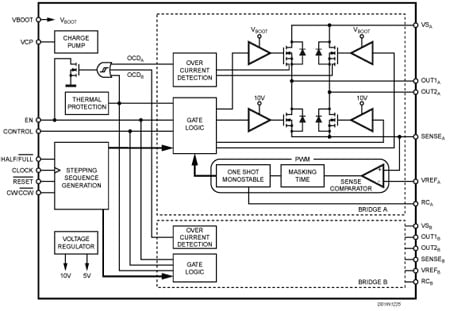

电路原理图
More from the product line
特别推荐
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L6208
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (2)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 | ||||
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| L6208D | Active 产品已量产 | SO-24 | Industrial | Ecopack1 | 10 | 2026-01-01T00:00:00.000+01:00 | |
| L6208D013TR | Active 产品已量产 | SO-24 | Industrial | Ecopack1 | 10 | 2026-01-01T00:00:00.000+01:00 | |
| L6208PD | Active 产品已量产 | PowerSO 36 | Industrial | Ecopack2 | 10 | 2026-01-01T00:00:00.000+01:00 | |
| L6208PD013TR | Active 产品已量产 | PowerSO 36 | Industrial | Ecopack2 | 10 | 2026-01-01T00:00:00.000+01:00 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
