兼具高性能和高安全性

STM32H5系列基于运行频率高达250 MHz的32位Arm® Cortex®-M33内核，兼具高性能、高安全性和高成本效益特性。

STM32H5系列微控制器提供高达2 MB的双BANK存储区Flash以及高达640 KB的SRAM，而且外设集成度高，可赋予开发人员更高的设计自由度。

STM32H5产品组合提供从25引脚到225引脚的丰富封装选项。其工作环境温度最高可达125 °C，在恶劣环境下依然适用。

STM32H5的可扩展安全性可满足各种应用的安全需求，包括物联网设备的安全需求。开发人员具有多种选择：从最基本的安全服务到完全认证的构建模块，在产品的整个生命周期内均由意法半导体提供维护。此MCU系列有助于提高设计的灵活性。

应用

平板电脑
智能家居
  • 空调
  • 冰箱冰柜
  • 中央报警系统
  • 洗衣机
智能手表
个人电子产品
  • 键盘
  • 智能手机
  • 物联网标签和跟踪设备
图标
智慧城市
  • 工业通信
  • 照明控制
  • 数字电源
中间有闪电符号的心脏图标
医疗保健
  • CPAP和呼吸机
  • 血液透析机
  • 配药器
  • 电动病床

产品类型

STM32H5E5/5F5

Arm® Cortex®-M33，搭载TrustZone®技术，运行频率250 MHz
高达4 MB的Flash存储器和1.5 MB的RAM。
以太网、带PHY的USB-HS、Chrom-ART2、TFT-LCD、MJEPG、PLAY和SMPS选项
STM32H5F5支持硬件加密加速器和STM32Trust TEE安全管理器（以X-CUBE-SEC-M-H5的形式提供）

查找产品
STM32H5E4/5F4

Arm® Cortex®-M33，搭载TrustZone®技术，运行频率250 MHz
高达4 MB的Flash存储器和1.5 MB的RAM。
以太网、Chrom-ART2、TFT-LCD、MJEPG、PLAY和SMPS选项
STM32H5F4支持硬件加密加速器和STM32Trust TEE安全管理器（以X-CUBE-SEC-M-H5的形式提供）

查找产品
STM32H563/573

Arm® Cortex®-M33，搭载TrustZone®技术，运行频率250 MHz
高达2 MB的Flash存储器和640 KB的RAM。
以太网、SMPS选项和硬件加密加速器（适用于STM32H573）
STM32H573支持STM32Trust TEE安全管理器（以X-CUBE-SEC-M-H5的形式提供）

查找产品
STM32H562

Arm® Cortex®-M33，搭载了TrustZone®技术，运行频率250 MHz
高达2 MB的Flash存储器，640 KB RAM

查找产品
STM32H523/533

Arm® Cortex®-M33，搭载了TrustZone®技术，运行频率250 MHz
高达512 KB的Flash存储器，272 KB RAM，具有加密功能

查找产品
STM32H503

Arm® Cortex®-M33，运行频率250 MHz
128 KB Flash存储器，32 KB RAM

查找产品

了解我们的产品组合

STM32H5系列以经济实惠的价格、更高的性能、更大的存储容量和更多的外设以及可扩展的安全功能，进一步扩展了STM32产品组合。

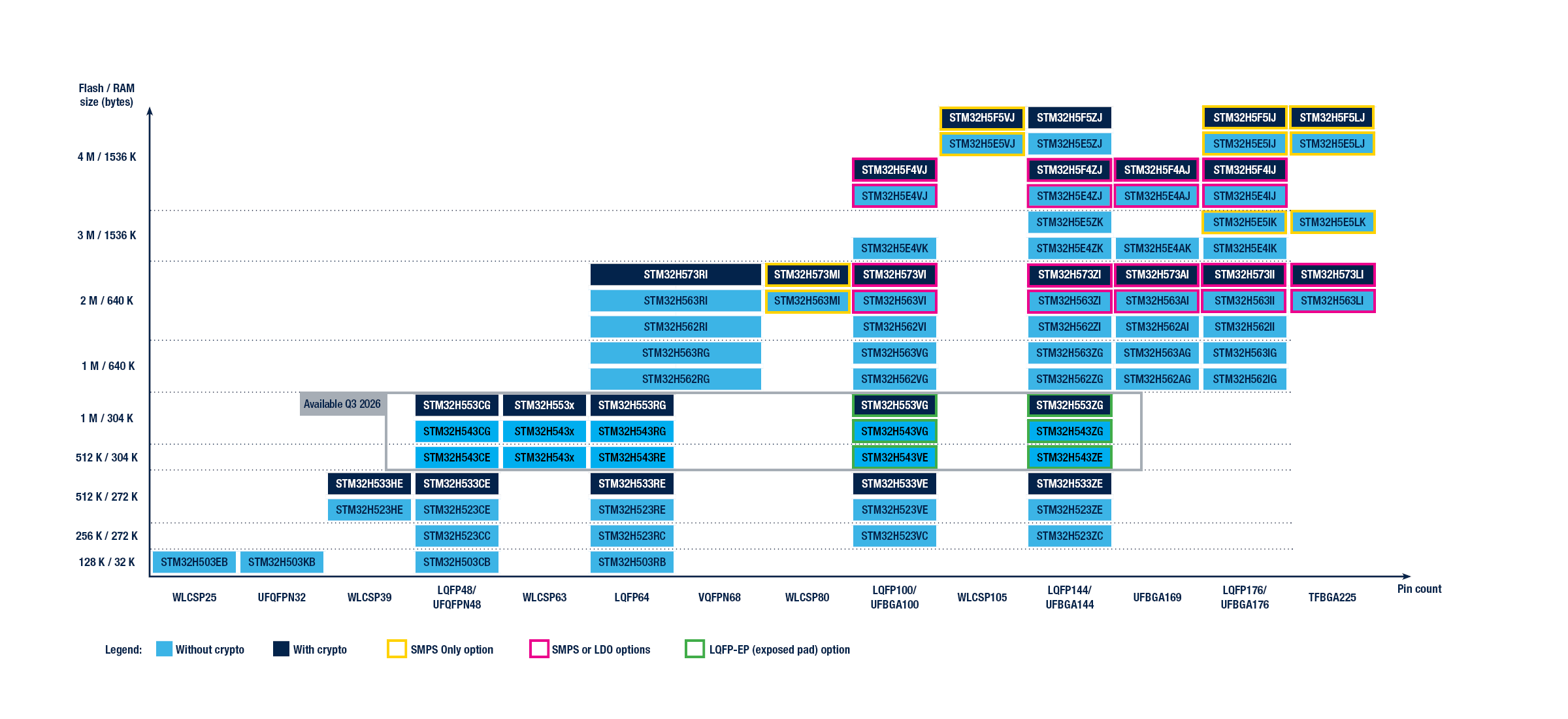

STM32H5系列产品组合 STM32H503EB STM32H503KB STM32H533HE STM32H523HE STM32H553CG STM32H543CG STM32H543CE STM32H533CE STM32H523CE STM32H523CC STM32H503CB STM32H553X STM32H543X STM32H543X STM32H573RI STM32H563RI STM32H562RI STM32H563RG STM32H562RG STM32H553RG STM32H543RG STM32H543RE STM32H533RE STM32H523RE STM32H523RC STM32H503RB STM32H573MI STM32H563MI STM32H5F4VJ STM32H5E4VJ STM32H5E4VK STM32H573VI STM32H563VI STM32H562VI STM32H563VG STM32H562VG STM32H553VG STM32H543VG STM32H543VE STM32H533VE STM32H523VE STM32H523VC STM32H5F5VJ STM32H5E5VJ STM32H5F5ZJ STM32H5E5ZJ STM32H5F4ZJ STM32H5E4ZJ STM32H5E5ZK STM32H5E4ZK STM32H573ZI STM32H563ZI STM32H562ZI STM32H563ZG STM32H562ZG STM32H553ZG STM32H543ZG STM32H543ZE STM32H533ZE STM32H523ZE STM32H523ZC STM32H5F4AJ STM32H5E4AJ STM32H5E4AK STM32H573AI STM32H563AI STM32H562AI STM32H563AG STM32H562AG STM32H5F5IJ STM32H5E5IJ STM32H5F4IJ STM32H5E4IJ STM32H5E5IK STM32H5E4IK STM32H573II STM32H563II STM32H562II STM32H563IG STM32H562IG STM32H5F5LJ STM32H5E5LJ STM32H5E5LK STM32H573LI STM32H563LI
产品线 双BANK存储区Flash (KB) RAM (KB) 存储器 USB 12位ADC FDCAN 以太网 电源 AES/SAES
PKA
OTFDEC
HUK
ST-iROT		 CCB
STM32H5F5 4096 1536 2xSDMMC
FMC
2xOctoSPI		 HS
PHY/FS/UCPD		 3 3 有 SMPS或
LDO		 有 有
STM32H5F4 4096 1536 2xSDMMC
FMC
2xOctoSPI		 FS/UCPD 3 3 有 SMPS/
LDO		 有 有
STM32H5E5 3072至4096 1536 2xSDMMC
FMC
2xOctoSPI		 HS
PHY/FS/UCPD		 3 3 有 SMPS或
LDO
STM32H5E4 3072至4096 1536 2xSDMMC
FMC
2xOctoSPI		 FS/UCPD 3 3 有 SMPS或
LDO
STM32H562 1024到2048 640 SDMMC
FMC
OctoSPI		 FS/
UCPD		 2 1 LDO
STM32H563 1024到2048 640 2x SDMMC
FMC
OctoSPI		 FS/
UCPD		 2 2 有 SMPS
LDO
STM32H573 2048 640 2x SDMMC
FMC
OctoSPI		 FS/
UCPD		 2 2 有 SMPS
LDO		 有
STM32H523 256到512 272 SDMMC
FMC
OctoSPI		 FS/
UCPD		 2 2 LDO
STM32H533 512 272 SDMMC
FMC
OctoSPI		 FS/UCPD 2 2 LDO 有
STM32H503 128 32 FS 1 1 LDO

优势

业内率先采用Arm® Cortex®-M33内核的32位MCU，搭载TrustZone®技术，运行频率可达250 MHz

强大且可扩展的安全服务，简化客户使用流程

右下角带有美元符号 ($) 的矩形屏幕或显示器

依托意法半导体优化的40 nm工艺技术打造的经济实惠型MCU，提供丰富的存储器、外设和封装选项

一流的图形处理能力，配备高容量集成存储器与新一代图形加速器

了解我们的STM32H5系列开发工具

意法半导体STM32 Nucleo开发板的俯视图。
STM32 Nucleo板
意法半导体蓝色评估板，配有小型彩色显示屏。
STM32探索套件
