STM32主流MCU



一组可扩展的32位通用MCU,适用于多种应用

STM32主流系列适用于多种应用,解决了多个细分市场的不同需求。

对于重视成本限制和上市时间的消费市场,高度平衡的器件架构有效地满足了基本的设计需求。STM32主流系列面向经济、稳健、耐用的系统,支持实时控制应用,如电机控制,以及复杂的数字功率转换设计。

在开发阶段,设计者将从这套广泛的开发工具中获益良多,其中包括STM32Cube软件和库,以及STM32 Nucleo板、探索套件和原型制作板。

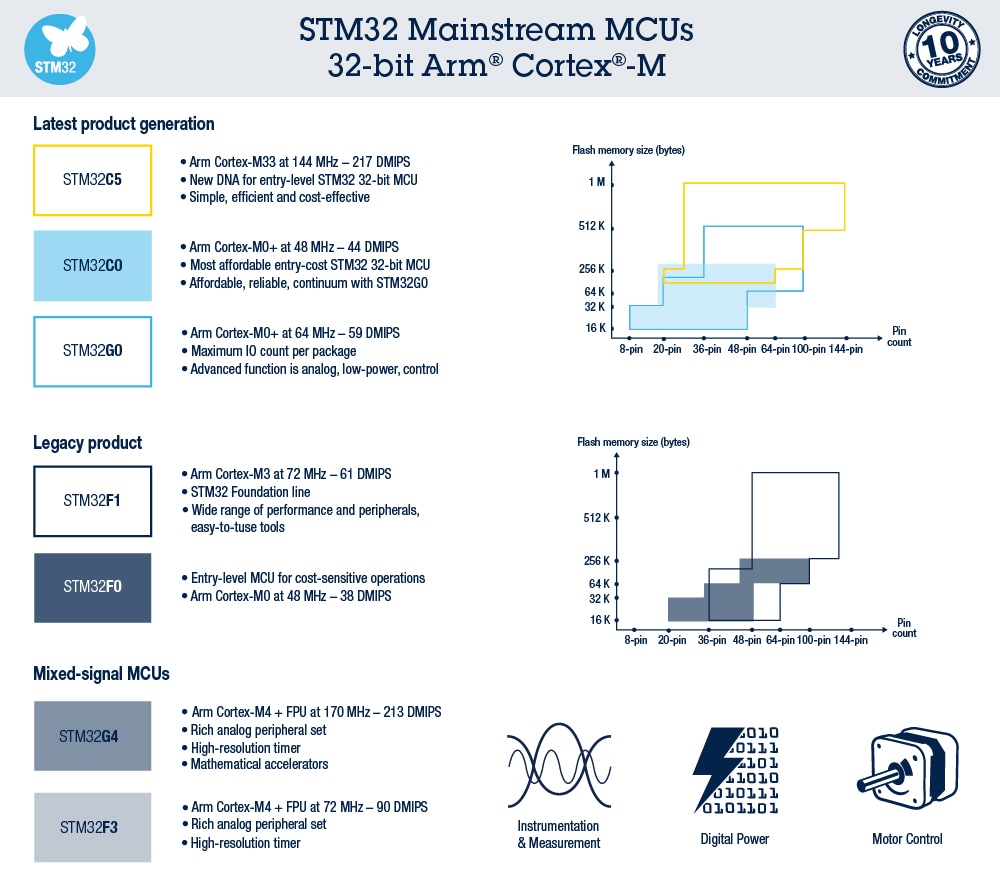

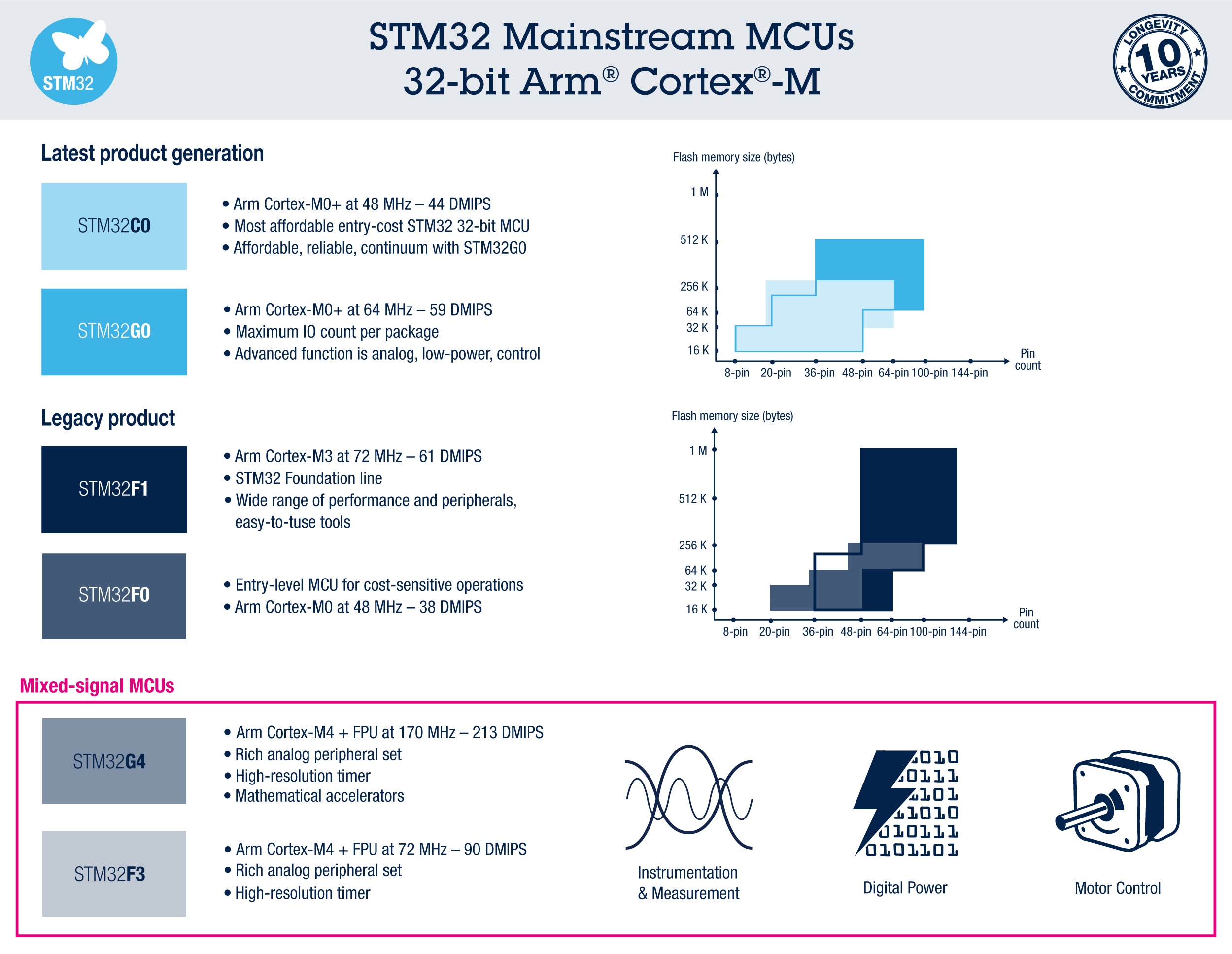

STM32主流系列概述

  • • 作为一款STM32 MCU,STM32C0系列拥有较高的性价比。STM32C0采用与STM32G0相同的技术平台,可确保您在确保设计质量和可靠性的同时降低成本。
  • STM32G0系列提供基于Arm® Cortex®-M0+内核的高效微控制器。高度集成的STM32G0 MCU可帮助开发人员降低BOM成本,适用于成本敏感型应用,可在降低功耗的同时改善性能。STM32G0系列具有STM32系列的基本功能,同时支持更广泛的封装和内存组合。
  • STM32F0系列包含32位MCU,面向开发优质产品平台的工程师,并能围绕行业标准Arm Cortex-M0内核,对开发工作进行标准化处理。
  • STM32F1系列称得上是STM32系列32位Arm® Cortex® MCU的先驱。该系列借助一流的外围设备确保高性能,高度集成且价格低廉,具有简单的架构和易于使用的工具。
  • STM32F3系列拥有丰富的高级模拟外围设备,可为消费者和工业应用提供精准的实时控制。
  • STM32G4系列能够满足相关应用的需求,使先进和/或丰富的模拟外设集与高性能CPU相结合。

STM32C0、STM32F0、STM22G0和STM32F1 MCU系列高度兼容,为未来的产品升级留出了空间。通过最大程度代码重用,它们可以缩短衍生工程的开发周期。

点击此处详细了解面向MCU的32位Arm Cortex-M处理器的优点。

STM32 MCU开发者社区
提供STM32 MCU开发人员所需的一切。
利用STM32C0 MOOC设计您的下一个
8/16位应用!
参与专门的在线培训,
充分利用STM32C0!

ST’s most affordable 32-bit MCU, makes 32-bit capabilities accessible to all developers

STM32C0系列弥补了8位或16位MCU与更高性能32位MCU之间的差距。STM32C0采用行业标准Arm Cortex-M0+内核,运行频率为48 MHz,可让开发人员以更低成本实现更多功能。它提供多达32 KB的Flash存储器和6至12 KB的RAM,采用8至48引脚封装。

  • 经济性:价格优惠、BOM得以优化,助您降低成本
  • 可靠性:STM32出众的质量和可靠性为您保驾护航
  • 连续性:与STM32G0一致的引脚排列,共享技术平台
