超紧凑型压阻式绝对压力传感器、260-1260 hPa、数字输出气压计、全压塑、穿孔LGA封装(HLGA)

下载数据手册 Order Direct

产品概述

描述

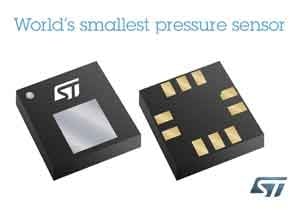

The LPS22HB is an ultra-compact piezoresistive absolute pressure sensor which functions as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application.

The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST.

The LPS22HB is available in a full-mold, holed LGA package (HLGA). It is guaranteed to operate over a temperature range extending from -40 °C to +85 °C. The package is holed to allow external pressure to reach the sensing element.

  • 所有功能

    • 260 to 1260 hPa absolute pressure range
    • Current consumption down to 3 μA
    • High overpressure capability: 20x full-scale
    • Embedded temperature compensation
    • 24-bit pressure data output
    • 16-bit temperature data output
    • ODR from 1 Hz to 75 Hz
    • SPI and I²C interfaces
    • Embedded FIFO
    • Interrupt functions: Data Ready, FIFO flags, pressure thresholds
    • Supply voltage: 1.7 to 3.6 V
    • High shock survivability: 22,000 g
    • Small and thin package
    • ECOPACK® lead-free compliant
