ST7580

批量生产
Design Win

FSK、PSK多模电力线网络片上系统

下载数据手册 Order Direct

产品概述

描述

The ST7580 is a flexible power line networking system-on-chip combining a high performing PHY processor core and a protocol controller with a fully integrated analog front-end (AFE) and line driver for a scalable future-proof, cost effective, single chip, narrow-band power line communication solution.

  • 所有功能

    • Fully integrated narrow-band power line networking system-on-chip
    • High-performing PHY processor with embedded turnkey firmware featuring:
      • B-FSK modulation up to 9.6 kbps
      • B-PSK, Q-PSK, 8-PSK modulations up to 28.8 kbps
      • Dual channel operation mode
      • Convolutional error correction coding
      • Signal-to-noise ratio estimation
      • B-PSK with PNA mode against impulsive noise
    • Protocol engine embedding turnkey communication protocol
      • Framing service
      • Error detection
      • Sniffer functionality
    • Host controller UART interface up to 57.6 kbps
    • AES-128 based authentication and confidentiality services
    • Fully integrated analog front-end:
      • ADC and DAC
      • Digital transmission level control
      • PGA with automatic gain control
      • High sensitivity receiver
    • Fully integrated single-ended power amplifier for line driving
      • Up to 1 A RMS, 14 V p-p output
      • Configurable active filtering topology
      • Very high linearity
      • Embedded temperature sensor
      • Current control feature
    • 8 to 18 V power amplifier supply
    • 3.3 V or 5 V digital I/O supply
    • Zero crossing detection
    • Suitable for EN50065, FCC part 15 and ARIB compliant applications
    • Communication carrier frequency programmable up to 250 kHz
    • VFQFPN48 7x7x1.0 48L exposed pad package
    • -40 °C to +105 °C temperature range

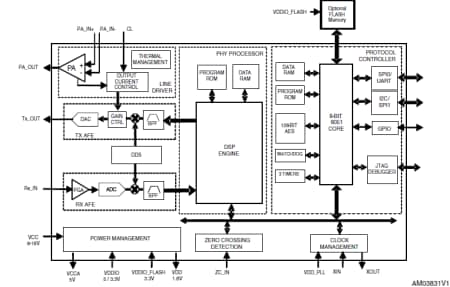

电路原理图

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - ST7580

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
ST7580
批量生产
VFQFPN 48 7x7x1.0 mm 工业 Ecopack2
ST7580TR
批量生产
VFQFPN 48 7x7x1.0 mm 工业 Ecopack2

ST7580

Package:

VFQFPN 48 7x7x1.0 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFQFPN 48 7x7x1.0 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

ST7580TR

Package:

VFQFPN 48 7x7x1.0 mm

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

VFQFPN 48 7x7x1.0 mm

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
