面向RS485和RS422通信应用的意法半导体低功耗、高速收发器确保中长距离电缆的高稳健性。该产品组合在系统级IEC61000-4-2标准下提供改进的ESD性能，对快速瞬态IEC61000-4-4具有良好的耦合抗扰性，通过可靠的热插拔检测实现高数据信号完整性，并且提供故障安全接收器和良好的眼图性能。
这些收发器支持广泛的电源和逻辑I/O电压，最大程度满足具体应用的需求。用于工业控制系统的SERCOS接口控制器可通过光纤环网、RS-485环网和RS-485总线实现实时通信。

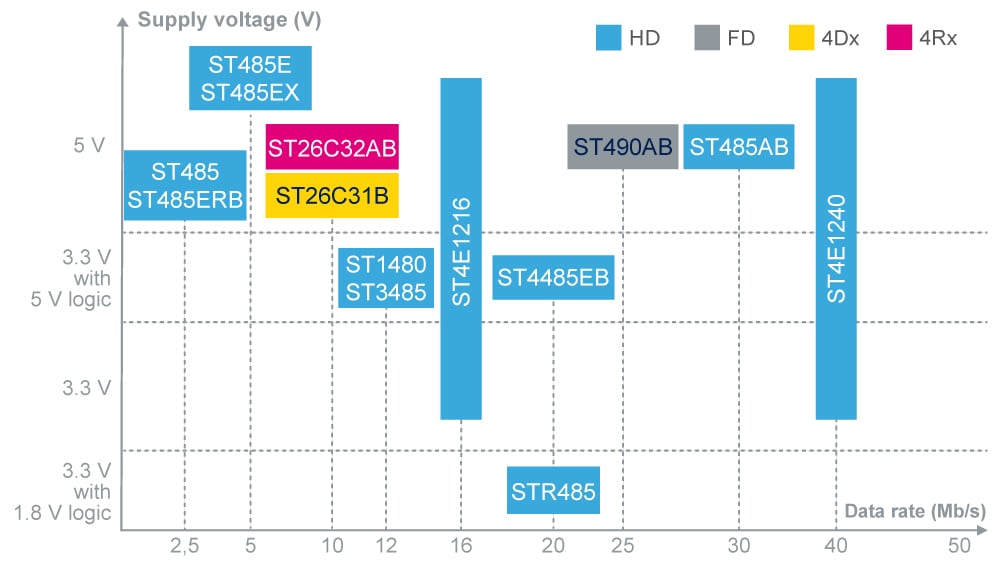

RS485和RS422产品组合的接口广泛，可满足各种工业应用在数据速率、电源、保护和封装方面的需求。
产品类型：
利用我们全新的ST4E1216和ST4E1240实现出色的ESD IEC61000-4-2接触保护。STR485支持低电源电压，Vcc=3.3 V且I/O兼容1.8 V。
了解我们的产品组合
优势：
- 总线信号完整性
- 提高维护设备的安全性
- 适合高速应用
- 易于实施和互操作性
Low-power RS-485 transceiver with selectable data rate and compatible with 1.8 V I/Os
A 3.3 V differential line transceiver for RS-485 data transmissions in half-duplex mode, the STR485LV includes an external slew rate select pin able to switch between a fast data rate up to 20 Mbps or a slow data rate up to 250 kbps for longer cables.
Able to interface directly with voltage logic from 1.8 to 3.3 V, this differential driver/receiver is robust over fast transient burst IEC61000-4-4 Class B conditions and the bus pins withstand over ±8kV contact discharge and ±16kV air discharge conditions without latch-up, exceeding IEC 61000-4-2 specifications.
Available in a small (3 x3 mm) DFN10 package with a temperature range from –40 up to +105 °C, the STR485LV is a perfect fit for a wide range of applications including telecom infrastructure, high-speed data links, and low-voltage microcontroller communications.
