产品概述
主要优势
超宽90°视场角
覆盖90°广视场角，8×8多区域测距可达350 cm，是姿势识别、智能音箱、扫地机器人和广角用户检测的理想选择。
节能高效且易于集成
具备可编程自主唤醒功能的低功耗模式。凭借紧凑尺寸以及兼容多种电源配置，轻松实现嵌入式集成。
100%隐私保护，黑暗环境亦无忧
无需图像采集，仅通过不可见IR实现绝对距离测量。在弱光或黑暗环境下仍保持完整性能，确保隐私安全与可靠运行。
描述

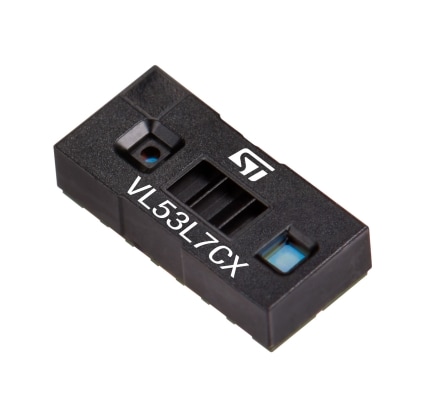

VL53L7CX飞行时间传感器专为需要超宽FoV的应用而设计，可提供90°对角视场。VL53L7CX基于意法半导体的FlightSense技术，在激光发射器上安装了一个高效的超表面透镜 (DOE)，能够将60°x 60°方形视场投影到场景中。
其多区域功能提供了8x8区域（64个区域）的矩阵，可以在高达350 cm的高速条件 (60 Hz) 下运行。
VL53L7CX兼具支持可编程距离阈值的自主模式与超宽视场，适用于任何需要低功耗用户检测的应用。其采用意法半导体的专利算法和创新模块结构，能够在每个区域检测视场内的多个目标，并具有深度理解能力。意法半导体的直方图算法可确保抵御60cm以上的盖片串扰。
VL53L7CX的引脚布局及驱动器均与VL53L5CX兼容，确保在两款传感器间轻松迁移。
与所有基于意法半导体FlightSense技术的飞行时间 (ToF) 传感器相同，无论目标颜色和反射率如何，VL53L7CX在各个区域均可检测绝对距离。
VL53L7CX采用微型回流焊封装，集成了SPAD阵列，可在各种环境光照条件下实现理想的测距性能，适用于各种盖片材料。
意法半导体所有ToF传感器均集成了VCSEL，可发射完全不可见的940 nm红外光，对人眼绝对安全（1级认证）。
VL53L7CX传感器非常适用于需要超宽视场的应用，例如：机器人、智能扬声器、视频投影仪和内容管理。多区域特性与90°视场相结合，可增强手势识别、机器人SLAM和智能建筑低功耗系统激活等各种全新应用的性能。
-
所有功能
- 速度快、结果准确且具有90°超宽视场的测距传感器
- 60°x 60°方形视场 (FoV)（90°对角线）
- 可覆盖4x4或8x8个独立区域，实现多区测距输出
- 自主低功耗模式，通过可编程中断阈值唤醒主机
- 测距范围可达350 cm
- 在每个区域均可进行多目标检测和测距
- 60 Hz高帧速率运行
- 直方图处理和算法补偿可最大程度减少或消除盖片串扰的影响
- 每个区域都配有运动指示器，用于显示目标是否以及如何移动
- 完全集成的小型化模块
- 发射器：940 nm不可见光垂直腔面发射激光器 (VCSEL) 和集成模拟驱动器
- 通过发射器和接收器上的衍射光学元件 (DOE) 形成方形视场
- 单光子雪崩二极管 (SPAD) 接收阵列
- 运行固件的低功耗微控制器
- 尺寸：6.4 x 3.0 x 1.6 mm
- 可轻松集成
- 单回流焊元件
- 灵活的电源选项，可由单个3.3 V或2.8 V电源供电，也可由3.3 V或2.8 V AVDD与1.8 V IOVDD搭配供电
- 兼容多种盖片材料
- 引脚及驱动器与VL53L5CX兼容
- 速度快、结果准确且具有90°超宽视场的测距传感器
