VD66GY

批量生产
Design Win Education

消费级全局快门1.5Mp RGB Bayer

下载数据手册

产品概述

描述

The VD66GY is part of a brand-new complete series of image sensors developed by STMicroelectronics for professional and consumer vision applications. Leveraging state-of-the-art technologies developed by STMicroelectronics own foundry, the sensor provides outstanding performance enabling to capture bright and sharp color images. With its clever design and complete toolbox of on-chip functions, it is the ideal solution for the design of tomorrow’s smart and optimized systems.

  • 所有功能

    • Cutting-edge performance of ST proprietary pixel:
      • BSI structure provides superior QE, MTF, and angular response.
      • Full DTI technology further increases sensitivity and sharpness.
      • Excellent response across the whole color spectrum.
      • Proprietary technology from ST foundry in France, ensuring safe supply.
    • Easy integration into your system:

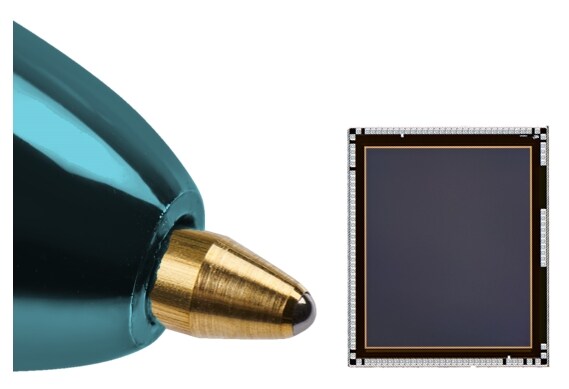

      • Ultracompact die with centered design to minimize your system size.
      • Small optical format: 4.6 mm (1/4'') at full resolution and 3.7 mm (1/5'') with 1 MP crop.
      • Low power, ideal for battery-powered devices.
      • Robust design and image quality in temperature.
    • A complete toolbox of in-sensor features:
      • Stunning images with in-sensor autoexposure and various corrections.
      • Multiple features to optimize data size and frame rates such as crop, binning, and programmable sequences.
      • 8 GPIOs enabling extra controls such as trigger or LED synchronization.
    • Seamless connection to embedded processing platforms:
      • 1 or 2 lanes MIPI CSI-2 interface enabling straight connection to entry-level cost-effective processing platforms.
      • Start immediately your development with our turnkey sensor boards, modules, and drivers for the VD66GY image sensor.
    • The VD66GY color image sensor is also available in monochrome (VD56G3) and RGB-NIR versions (VD16GZ).

您可能还会喜欢...

EDA符号、封装和3D模型

STMicroelectronics - VD66GY

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
VD66GYCCA/RW
批量生产
GOOD DIE 工业 N/A

VD66GYCCA/RW

Package:

GOOD DIE

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

GOOD DIE

Grade

Industrial

RoHS Compliance Grade

N/A

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
温度(ºC)
最小值
最大值
VD66GYCCA/RW
Available at distributors

经销商的可用性 VD66GYCCA/RW

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

VD66GYCCA/RW 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

VD66GYCCA/RW

Operating Temperature (°C)

Min:

Max:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
