产品概述
描述

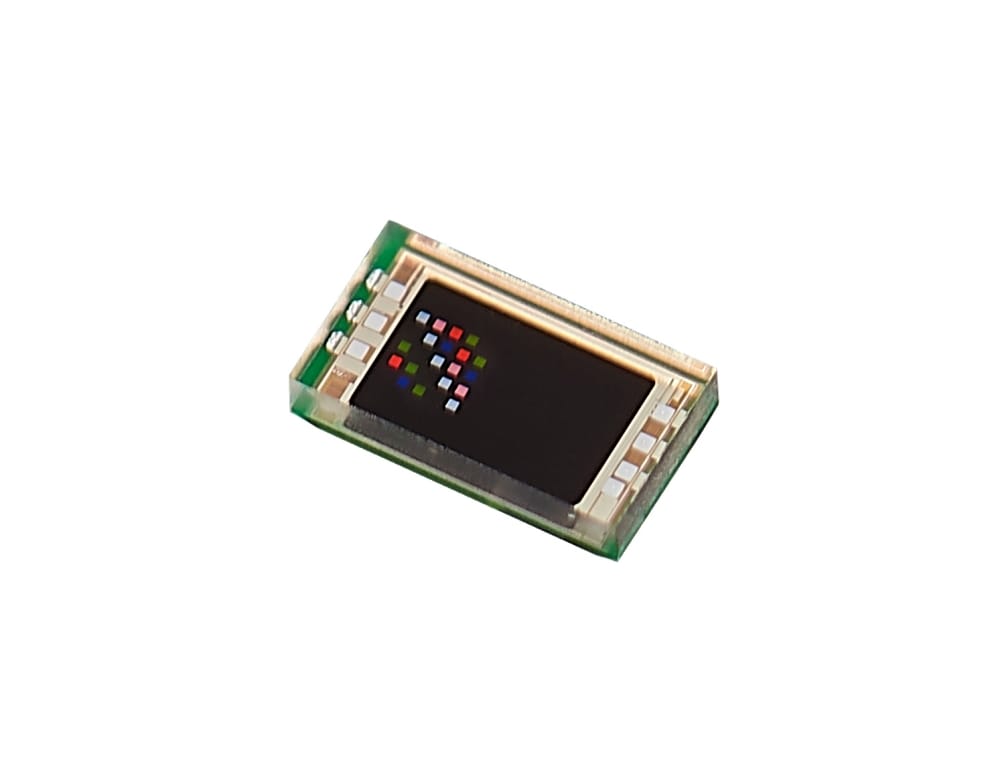

The VD6283TAB (1.83 x 1.0 x 0.55 mm) is the third version of ST's ambient light sensors with advanced light flicker extraction. Light measurement is fast and accurate thanks to an individual ADC and a readout for each color channel. The VD6283TAB uses hybrid color filters with precise responses which enhance the accuracy of the correlated color temperature (CCT) and Lux performance. The VD6283TAB can be used to assist camera white-balance in less than 30 ms.
With a patented architecture and a high-performance photodiode design, the VD6283TAB can extract light flickering frequencies to enhance camera experience, and avoid “banding effects” on videos or viewfinder modes. Additionally, the VD6283TAB is the only sensor able to extract different light flicker waveforms, including LED square signals that can run flicker operations simultaneously with ALS operations.
-
All features
- Miniature optical module
- 1.83 x 1.0 x 0.55 mm
- Optical BGA, 6-balls, reflowable package
- Operates with phone cover glass on top
- ALS operation with 6 independent channels
- Advanced hybrid filters with high photo count response
- Parallel sensing of all channels: red, green, blue, IR, clear, and visible
- High dynamic range from 7 mLux to 36 kLux (green channel)
- High sensitivity and low noise in low light conditions
- Light flicker extraction
- Innovative readout architecture to extract AC light flicker signal
- From 100 Hz to 2 kHz frequency detection, sine or square wave
- Several extraction modes are available (analog or digital)
- Software driver provided by STMicroelectronics
- I²C interface up to 1 Mbit/s (fast mode plus)
- Perfectly suited for mobile applications
- 1.8 V power supply
- Low-power consumption
- Operating temperature -30 to 85°C
- Miniature optical module
EDA Symbols, Footprints and 3D Models
STMicroelectronics - VD6283TAB
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| VD6283TAB45/1 | Active 产品已量产 | WLCSP T-SHAPE | Industrial | Ecopack2 | - | - |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| VD6283TAB45/1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
VD6283TAB45/1 Active
