产品概述
-
所有功能
- Global shutter technology, STMicroelectronics proprietary single layer
- 3D stacked sensor 40 nm/65 nm
- 2.61 µm x 2.61 µm BSI pixel with full CDTI (capacitive deep trench)
- High performance with excellent
- QE (quantum efficiency)
- MTF (modulation transfer function) up to near IR
- Perfect PLS (shutter efficiency)

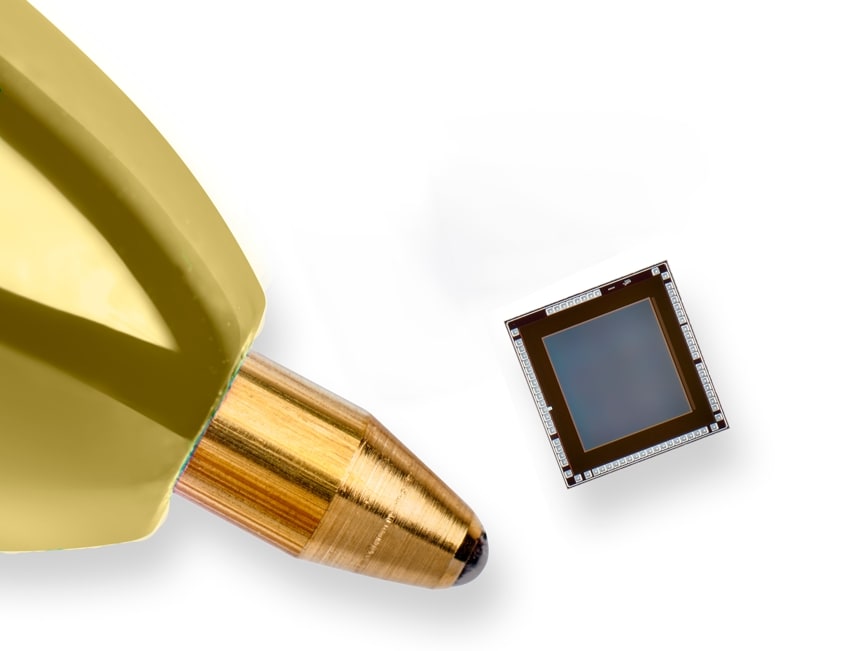

- Smallest sensor on market with:
- Compact die size: 2.6 mm x 2.5 mm
- 640 pixel x 600 pixel resolution
- Very small pixel array, 1.67 mm x 1.57 mm
- Optical format between 1/9 inch
- Operating junction temperature: -30°C to 85°C
- Single lane transmitter MIPI CSI-2 (copyright© 2005-2010 MIPI Alliance, Inc. Standard for camera serial interface 2 (CSI-2) version 1.0) version 1.3, 1.2 Gbps per lane
- Fast mode+ I²C control interface
- Integrated temperature sensor
- Up to 210 fps (frames per second) at full resolution and 260 fps with VGA resolution
- Programmable sequences of 4-frame contexts, including frame parameters
- Automatic dark calibration
- Dynamic defective correction
- Embedded auto-exposure
- 4 multiple function IO, dynamically programmable with frame contexts (GPIO, strobe pulse, pulse-width modulation, V sync)
- Up to 4 illumination control outputs, synchronized with sensor integration periods and leader or follower external frame start
- Mirror/flip readout
- Fully sequenceable with frame contexts
- Crop
- Binning (x2 and x4)
- Analog binning: 320x240 @ 500 fps, 320x252 @ 480 fps, 320x300 @ 414 fps
- Subsampling (x2 and x4)
