产品概述
主要优势
全光照条件下均可清晰成像
从可见光到近红外的卓越灵敏度与高MTF特性，结合片上HDR技术，即使在最昏暗的户外环境中也能呈现清晰细腻的图像。
简化计算机视觉开发
强大的片上处理能力与MIPI CSI-2输出接口可简化系统集成并降低功耗，为嵌入式视觉应用提供卓越的图像质量。
双全局与卷帘快门
兼具无伪影的纯净画质、卓越的动态范围与优化的光敏感性，在各种场景中实现多功能、高品质的影像采集。
描述

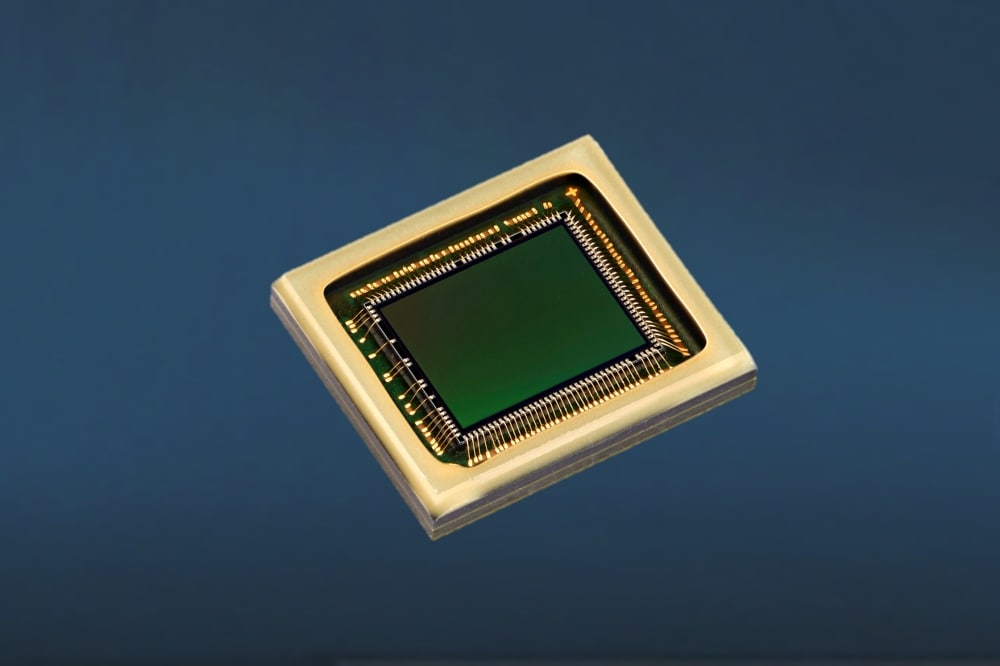

The VB5943 and VD5943 are 5.1 megapixel, 2.25 µm global, and rolling shutter image sensors. They are designed for a wide spectrum of applications that require capturing monochromatic from visible to NIR (near infrared) images. Operation of these sensors combines global and rolling shutter technology with an extended dynamic range.
Leveraging from preeminent 3D stacking and ST patented processes, these sensors perform outstandingly in the NIR (940 nm) and visible region. In global shutter mode, they can capture up to 100 frames per second in a 2560 x 1984 resolution format in global shutter operation.
The VB5943 and VD5943 sensors can be used in rolling shutter mode, taking advantage of low dark noise capability. They can operate in an 18-bit HDR mode compressed down to 12 or 10 bits through a customizable PWL.
For computer vision applications, or night or low light conditions, acquisition can be switched to global shutter mode with an NIR light source. Switching to global shutter mode with an external NIR light source greatly reduces the system power consumption that is required to drive the illumination.
These sensors are also capable of working in split exposure, enabling spatial HDR mode.
-
所有功能
- Resolution: 5.1 megapixel sensor (2560 x 1984)
- Chroma: Monochrome
- Optical format: 1/2.5 inch
- Image array size: 5.8 mm x 4.5 mm
- Pixel technology:
- 3D stacked sensor with 2.25 μm x 2.25 μm BSI pixel size
- Global and rolling shutter technology
- Functions:
- Dual exposure modes for:
Common exposure (same for all pixels) Split exposure (specific exposure control for 1 pixel in each 2x2 kernel) - Automatic/external synchronization mode
- Independent horizontal and vertical image flip
- Automatic dark calibration
- Dynamic defective pixel correction
- Integrated noise reduction feature
- Dual exposure modes for:
- Advanced image processing:
- Embedded 18-bit high dynamic range pixel reconstruction
- Four programmable contexts with versatile sequencing management
- Frame rates:
- Up to 100 frames per second at full resolution in global shutter mode
- Up to 50 frames per second at full resolution in rolling shutter mode
- Interfaces:
- MIPI CSI-2 interface (dual/quad lanes, max. 1.5 Gbps/lane)
- MIPI CCI control interface up to 1 MHz
- 4 programmable GPIOs (general-purpose input/output) to control external illuminators:
Output is synchronized with sensor integration periods PWM (pulse-width modulation) control
- Additional features: Integrated temperature sensor
- Package options:
- Available as bare die
- Available in OBGA package
- OBGA package:
- Package size: 10.3 x 8.9 mm
- Ball matrix: 10 x 9 balls, pitch 0.8 mm
