X-STM32MP-MSP01

批量生产
Design Win

X-STM32MP-MSP01

下载数据摘要 Order Direct

产品概述

描述

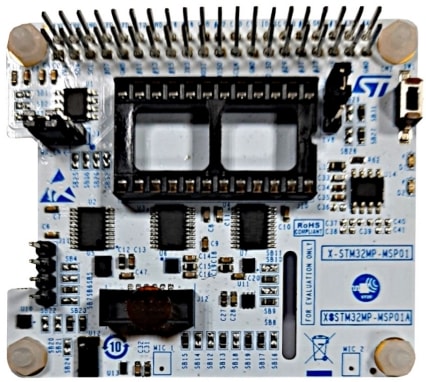

The X-STM32MP-MSP01 is a multisensor evaluation board that embeds motion MEMS, environmental, ambient light and Time-of-Flight sensors, a digital microphone, and an NFC tag. This board works with the STM32MPU discovery kit. It can be used with the X-LINUX-MSP1 to read the sensors.

The X-STM32MP-MSP01 main devices are the ISM330DHCX 3-axis accelerometer and gyroscope, the IIS2MDC 3-axis magnetometer, and the LPS22HH MEMS nano pressure sensor.

The board also includes the STTS22H digital temperature sensor, the VD6283TX ambient light sensor, the IIS2DLPC 3-axis accelerometer, the VL53L5CX multizone ranging sensor, and the MP23DB02MM digital MEMS microphone. The on-board dynamic NFC/RFID tag IC can work with a dual interface for the I²C, through a 13.56 MHz RFID reader, or via an NFC phone.

The X-STM32MP-MSP01 interfaces with the STM32MP1Dev via a 40-pin GPIO connector pins using I²C, SPI, and general GPIO pins. It is compatible with STM32MP157F-DK2 and a Raspberry Pi GPIO connector layout.

  • 所有功能

    • Included sensors:ISM330DHCX: 3-axis accelerometer and 3-axis gyroscopeIIS2MDC: 3-axis digital magnetometer (±50 gausses)IIS2DLPC: 3-axis accelerometer for industrial applications (±2/±4/±8/±16 g)STTS22H: digital temperature sensor (-40 to +125°C)LPS22HH: nano pressure sensor (260 - 1260 hPa)VD6283TX: ambient light sensorVL53L5CX: Time-of-Flight (ToF) multizone ranging sensor
    • Dynamic NFC/RFID tag
    • Digital microphone
    • Standard DIL 24 pin socket for adapter boards
    • Compatible with STM32MP157F-DK2 and Raspberry Pi

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
X-STM32MP-MSP01
批量生产
CARD 工业 Ecopack2 Yes

X-STM32MP-MSP01

Package:

CARD

Material Declaration**:

Marketing Status

批量生产

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
核心产品
X-STM32MP-MSP01
Available at distributors

经销商的可用性 X-STM32MP-MSP01

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

X-STM32MP-MSP01 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

X-STM32MP-MSP01

供应商:

ST

核心产品:

STM32MP157F-DK2, ISM330DHCXTR, IIS2MDCTR, IIS2DLPCTR, STTS22HTR, VD6283TX45/1, VL53L5CXV0GC/1

代理商名称

代理商库存报告日期:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
