STM32MP expansion board for Low Power GNSS communication

下载数据摘要 Order Direct

产品概述

描述

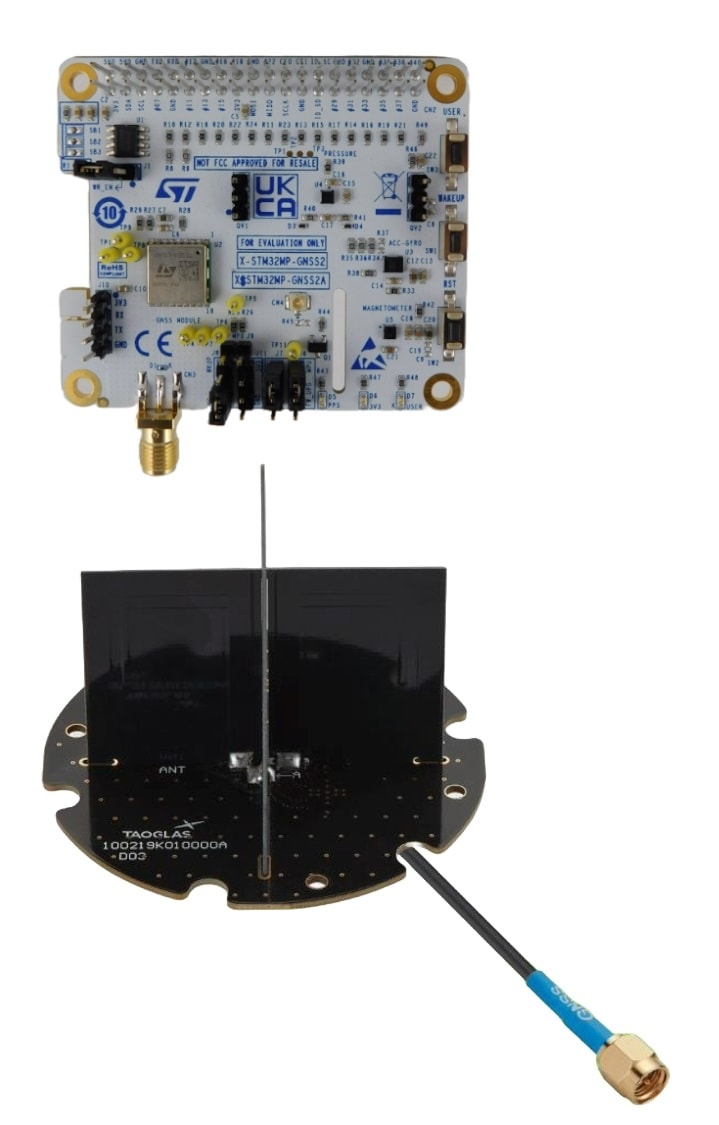

X-STM32MP-GNSS2 is an STM32 MPU expansion board with Teseo-LIV4F module for Low Power Multi-Constellation GNSS positioning using various sensors for data accuracy.

The X-STM32MP-GNSS2 interfaces with the STM32MP microprocessor via 40 pin GPIO connector pins using I2C, UART, GPIO connections for various components. It is compatible with both STM32MP157F-DK2 and Raspberry Pi’s GPIO connector layout.

Teseo-LIV4F is a global navigation satellite system (GNSS) standalone low power module. It embeds the Teseo IV positioning receiver IC working simultaneously on multiple constellations (GPS/Galileo/Glonass/BeiDou/QZSS/IRNSS).

iNEMO inertial module ISM330DHCX has a full-scale acceleration range of ±2/±4/±8/±16 g and a wide angular rate range of ±125/±250/±500/±1000/±2000/±4000 dps.

QVAR Embedded ILPS22QS functions as a digital output barometer, supporting dual full-scale up to 4060 hPa.

The IIS2MDC is a high-accuracy, ultra-low-power 3-axis digital magnetic sensor having dynamic range up to ±50 gauss.

  • 所有功能

    • Teseo-LIV4F GNSS Receiver
    • On board iNEMO inertial module for accelerometer and gyroscope
    • QVAR embedded pressure sensor for altitude measurement
    • Magnetometer for position accuracy
    • LEDs for PPS, power, user
    • Keys for reset, wakeup and user
    • EEPROM for automatic GPIO setup and driver setup
    • Compatible with both STM32MP157F-DK2 and Raspberry Pi’s GPIO connector

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 符合RoHS级别 WEEE Compliant 材料声明**
X-STM32MP-GNSS2
批量生产
Ecopack2 Yes

X-STM32MP-GNSS2

Package:

Ecopack2

Material Declaration**:

Marketing Status

批量生产

RoHS Compliance Grade

Ecopack2

WEEE Compliant

Yes

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
核心产品
X-STM32MP-GNSS2
Available at distributors

经销商的可用性 X-STM32MP-GNSS2

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

X-STM32MP-GNSS2 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

X-STM32MP-GNSS2

供应商:

ST

核心产品:

STM32MP157F-DK2, TESEO-LIV4FTR, ISM330DHCXTR, ILPS22QSTR, IIS2MDCTR
