产品概述
主要优势
出色的无线性能
- 一流的射频性能，可确保连接稳定可靠
- 先进的射频效率
- 物联网设备的电源控制选项可延长电池使用寿命
性价比高
- 为需要快速简便的Bluetooth®低功耗插入式连接的应用提供最佳价位
- 高集成度的小型封装（集成了巴伦和HSE）
- 支持双层PCB，可降低物料成本并简化电路
丰富的无线设计生态系统
- 借助STM32Cube简化项目开发
- 射频参考设计，IPD芯片便于阻抗匹配
- Bluetooth®低功耗和网格协议栈、软件、工具与资源
描述

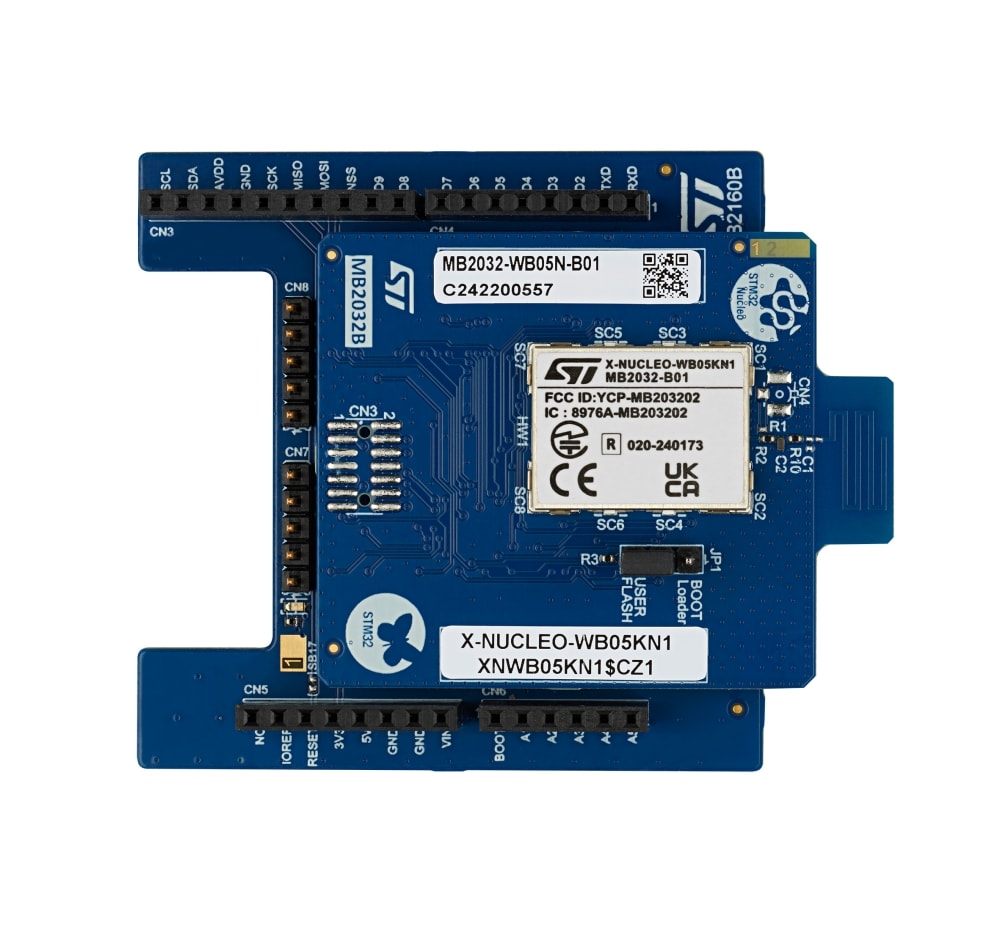

The X-NUCLEO-WB05KN1 expansion board provides Bluetooth® Low Energy connectivity for developer applications and can be plugged into an STM32 Nucleo development board (for example NUCLEO-U575ZI-Q) through its ARDUINO® Uno V3 connectors.
The expansion board features Bluetooth® v5.4 compliant and FCC‑certified STM32WB05KN. This SoC manages the complete Bluetooth® Low Energy stack and protocols on its Arm® Cortex®‑M0+ core and programmable flash memory. STM32WB05KN supports central and peripheral modes and increased transfer rates with data length extension (DLE).
X-NUCLEO-WB05KN1 interfaces with the STM32 Nucleo microcontroller via UART (default) with and without hardware flow control. Full duplex SPI with an interrupt line is also available. The firmware loaded on the module defines the host interface and, to modify it, simply change the firmware without modifying the hardware.
-
所有功能
- Based on STM32WB05KN with preloaded network coprocessor firmware with UART interface
- Bluetooth® v5.4 compliant
- Bluetooth® Low Energy data packet length extension
- Embedded MLPF-NRG-01D3 integrated impedance matching network with harmonics filter
- On-board PCB antenna
- SPI interface optional through dedicated firmware
- Compatible with STM32 Nucleo boards
- Equipped with ARDUINO® Uno V3 expansion connector
- Scalable solution, capable of cascading multiple boards for larger systems
- Free comprehensive development firmware library and examples, compatible with the X-CUBE-WB05N expansion software package for STM32Cube
- Based on STM32WB05KN with preloaded network coprocessor firmware with UART interface
