X-NUCLEO-OUT08A1
Active
Design Win
Industrial digital output expansion board based on IPS160HF for STM32 Nucleo

储存到myST
Download databrief

产品概要

描述

面向STM32 Nucleo的X-NUCLEO-OUT08A1工业数字输出扩展板为2 A（典型）数字输出模块提供强大而灵活的评估和开发环境，具有IPS160HF单路高边开关的安全驱动和智能诊断功能。

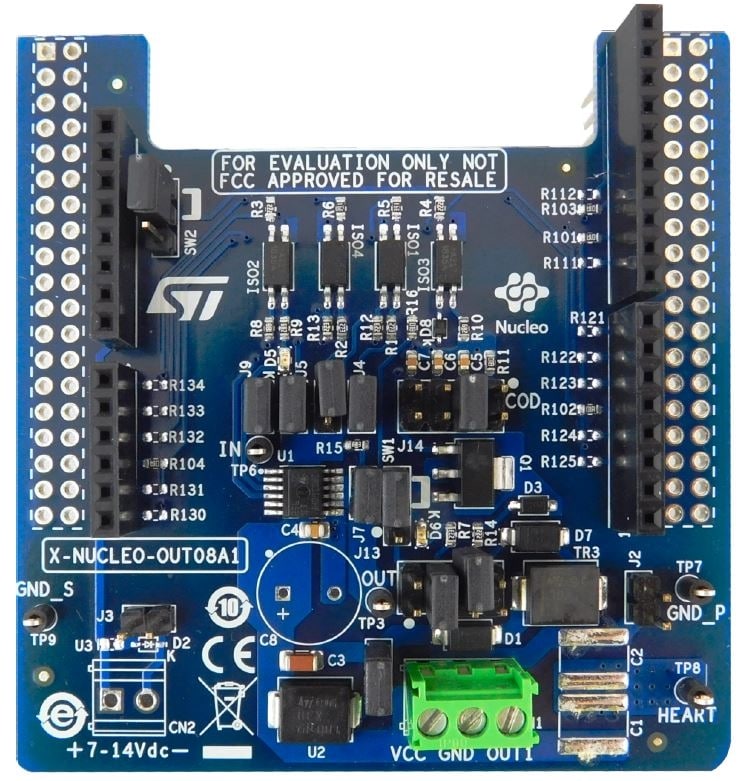

X-NUCLEO-OUT08A1 IMAGE

X-NUCLEO-OUT08A1通过由GPIO引脚和Arduino™UNO R3（默认配置）和ST morpho（可选，未安装）连接器驱动的3 kV光耦元件与STM32 Nucleo上的微控制器相连接。

该扩展板可以连接到一块NUCLEO-F401RE或NUCLEO-G431RB开发板，也可以与另一个X-NUCLEO-OUT08A1或X-NUCLEO-OUT10A1进行堆叠。

两块X-NUCLEO-OUT08A1扩展板可以用于评估一个双通道数字输出模块（每个通道具有2 A（典型）能力）或者一个2 A（典型）单通道安全数字输出模块。在第二种设想情况下，第一屏蔽输出连接到第二屏蔽输出的电源。专用的板载硬件可以启用或禁用，以激活高电容性负载的快速放电，输出电压感应和额外的浪涌脉冲输出线路保护。

  • 性能一览

    • 基于IPS160HF单路高边开关，其特征如下：
      • 可在60 V/2.4 A条件下运行
      • 低功率耗散（RON(MAX) = 120 mΩ）
      • 电感负载的快速衰减
      • 开路负载检测和诊断
      • 通过热关断和熔断实现过载和过热保护
      • PowerSSO-12L 封装
    • 应用板工作范围：12 - 33 V/0 - 2.4 A
    • 扩展工作电压范围（J1断开）可达60 V
    • 状态和诊断LED
    • 3 kV电隔离
    • 电源轨反向极性保护
    • 兼容安全数字输出架构
    • EMC符合IEC61000-4-2、IEC61000-4-3、IEC61000-4-5
    • 在STM32 Nucleo开发环境中具有广泛的应用开发潜力
    • 配有Arduino™ UNO R3连接器
    • CE认证
    • 符合RoHS和中国版RoHS标准
