产品概述
描述

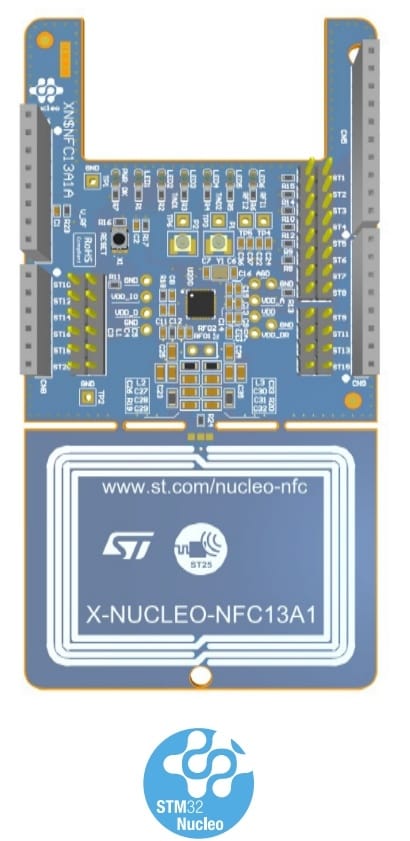

The X-NUCLEO-NFC13A1 NFC card reader expansion board is based on the ST25R210 device.
The expansion board is configured to support all five NFC Forum tag types in reader mode.
The ST25R210 manages frame coding and decoding in reader mode for standard applications.
It supports ISO/IEC 14443 type A/B and ISO/IEC 15693 (single subcarrier only) and ISO/IEC 18092 communication protocols as well as the detection, reading and writing of NFC Forum type 1, 2, 3, 4, and 5 tags.
Integrated HF reader/NFC initiator/NFC target IC with an antenna etched on the PCB and the related tuning circuit.
-
所有功能
- On-board NFC card reader and host card emulation IC: ST25R210
- NFC Forum NFC-A, NFC-B, NFC-F, and NFC-V poller
- NFC Forum NFC-A, NFC-F listener
- 13.56 MHz inductive antenna, 47 x 34 mm, four turns, etched on PCB and associated tuning circuit
- Compatible with STM32 Nucleo boards for easy and quick development
- Six general-purpose LEDs
- Equipped with Arduino® UNO R3 connector
- Free comprehensive development firmware library compatible with STM32Cube and samples for ST25R210
- FCC certified
- RoHS and WEEE compliant
特别推荐
质量与可靠性
| 料号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|---|---|
| X-NUCLEO-NFC13A1 | 预览 产品尚在设计阶段 | CARD | 工业 | Ecopack2 | Yes | |
X-NUCLEO-NFC13A1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
