X-NUCLEO-6180XA1

NRND
Design Win

STM32 Nucleo的接近和环境光传感器扩展板,基于VL6180X

下载数据摘要

产品概述

推荐的替代产品: X-NUCLEO-6180A1

描述

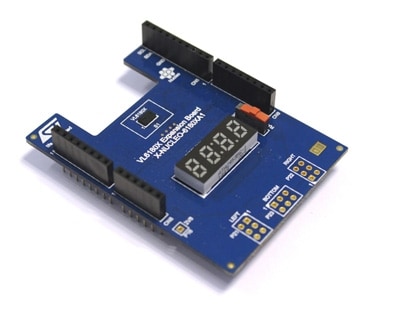

The X-NUCLEO-6180XA1 expansion board features the VL6180X proximity, gesture and ALS sensor, based on ST’s FlightSense™, Time-of-Flight technology. It is an evaluation board that provides an introduction to the proximity, ranging and light sensing capabilities of the VL6180X module.It is compatible with the STM32 Nucleo board family, and with the Arduino UNO R3 connector layout.Several ST expansion boards can be superposed through the Arduino connectors, which allows for example to develop VL6180X applications with Bluetooth or WiFi interface.

  • 所有功能

    • VL6180X proximity, gesture and ambient light sensing (ALS) module.
    • Slider switch controlling 2 functions:
      • Ranging measurement, beyond 400mm.
      • Ambient light sensing, up to 100 kLux1.
    • 4-digit display, displaying either the distance of a target from the proximity sensor, or the lux value from the ambient light sensing (ALS).
    • Excellent ranging accuracy, independent of the reflectance of the target.
    • In order to easily integrate multiple VL6180X’s into customer devices, up to 3 external satellite VL6180X boards can be connected to the expansion board.
    • Satellite boards can be ordered on http://www.st.com/web/en/catalog/tools/PF261466 under the reference VL6180X-SATEL.
    • Basic gesture recognition application can be developed with one or multiple VL6180X modules.
    • Compatible with STM32 Nucleo board family.
    • Equipped with ArduinoTMUNO R3 connector.
    • RoHS compliant.
    • Full system SW supplied, download from www.st.com/vl6180x.

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 WEEE Compliant 材料声明**
X-NUCLEO-6180XA1
NRND
CARD 工业 Ecopack1 -

X-NUCLEO-6180XA1

Package:

CARD

Material Declaration**:

Marketing Status

NRND

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
