产品概述
描述

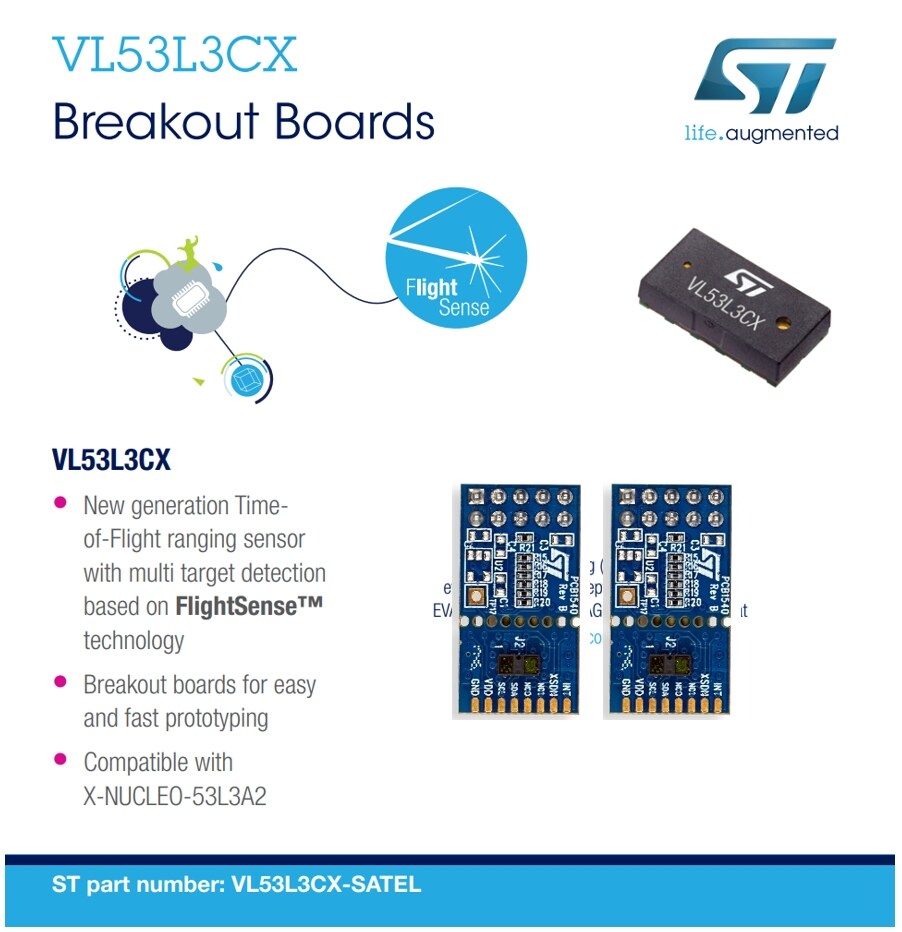

The VL53L3CX-SATEL breakout boards can be used for easy integration into customer devices.
Thanks to the voltage regulator and level shifters, the VL53L3CX breakout boards can be used in any application with a 2.8 V to 5 V supply.
The PCB section supporting the VL53L3CX module is perforated so that developers can break off the mini PCB for use in a 2.8 V supply application using flying leads. This makes it easier to integrate the VL53L3CX-SATEL breakout boards into development and evaluation devices due to their small form factor.
-
所有功能
- VL53L3CX Time-of-Flight (ToF) ranging sensor with multi target detection
- Regulator: 5 to 2.8 V range input voltage (output voltage: 2.8 V)
- VL53L3CX signal interface level shifter
- True distance measurement independent of target size and reflectance
- Divisible board enabling use as mini PCB breakout board, easy to integrate in customer device
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 08 Dec 2020 | 08 Dec 2020 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|---|---|
| VL53L3CX-SATEL | 批量生产 | CARD | 工业 | Ecopack1 | - | |
VL53L3CX-SATEL
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
