产品概要
描述

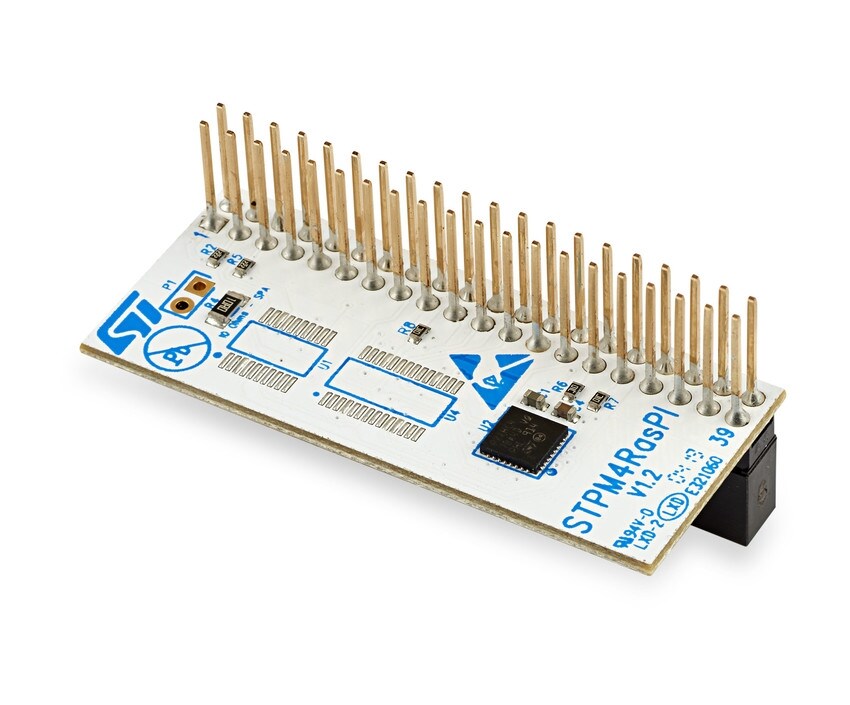

The STPM4RasPI is an official extension board to connect the ST33 TPM products to the Raspberry Pi® device. It is designed for development, proof of concept or demonstration activities. The board is shipped with one trusted platform module soldered (see ordering information for TPM product availability).
-
性能一览
- I²C TPM compatible serial interface
- SPI TPM compatible serial interface
- 40-pin female connector to plug on Raspberry Pi®
- 40-pin male connector to probe signal or connect another extension board
- P1 connector (optional) to measure the TPM power consumption
- Supported ST33 TPM devices:
- ST33TPHF20SPI, ST33TPHF2ESPI, ST33TPHF2XI2C, ST33TPHF20I2C, ST33TPHF2EI2C and ST33TPHF2XSPI in VFQFPN32 package
特别推荐
Quality and Reliability
| Part Number | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|
| SCT-TPM-RASPIHC2 | - | - | - | |
| SCT-TPM-RASPIHD5 | - | - | - | |
SCT-TPM-RASPIHC2
Package:
-Material Declaration**:
SCT-TPM-RASPIHD5
Package:
-Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
Thank you for your interest in our Partner's solution!
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCT-TPM-RASPIHC2 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
| ||||||||
| SCT-TPM-RASPIHD5 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
SCT-TPM-RASPIHC2 Active
Budgetary Price (US$)*/Qty:
-
distributors
无法联系到经销商，请联系我们的销售办事处
Package:
Packing Type:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):
SCT-TPM-RASPIHD5 Active
Budgetary Price (US$)*/Qty:
-
distributors
无法联系到经销商，请联系我们的销售办事处
Package:
Packing Type:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):
