STM8SVLDISCOVERY

NRND
Design Win

探索套件,采用STM8S003K3 MCU

下载数据摘要

产品概述

描述

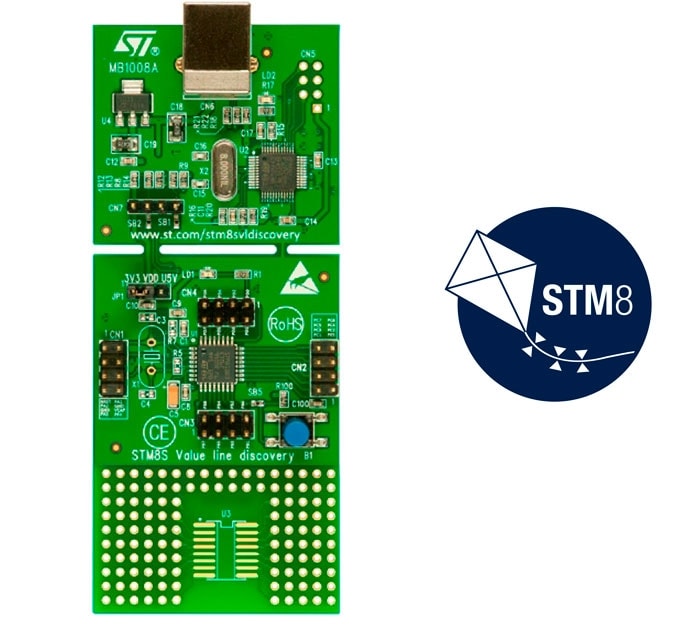

The STM8SVLDISCOVERY is a quick start evaluation board which helps the user to discover the STM8S Value line features and to develop applications. It includes everything required for beginners and experienced users to get started quickly.

Even though the STM8SVLDISCOVERY is built around an STM8S003K3T6, it allows evaluation of the main features of all the STM8S Value line MCUs. It includes an ST-LINK embedded debug tool.

The STM8SVLDISCOVERY simply plugs into a PC through a standard USB cable. Numerous applications are available from the www.st.com/stm8svldiscovery web page.

  • 所有功能

    • STM8S003K3T6 microcontroller, 8-Kbyte Flash memory, 1-Kbyte RAM, 128-byte EEPROM
    • Powered by USB cable between PC and STM8SVLDISCOVERY
    • Selectable power of 5 V or 3.3 V
    • User button
    • User LED
    • Extension header for all I/Os
    • Wrapping area for user applications
    • Embedded ST-LINK
    • USB interface for programming and debugging
    • SWIM debug support

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 符合RoHS级别 材料声明**
STM8SVLDISCOVERY
NRND
Ecopack1

STM8SVLDISCOVERY

Package:

Ecopack1

Material Declaration**:

Marketing Status

NRND

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
