STM8L101-EVAL

NRND
Design Win

评估板,采用STM8L101K3 MCU

下载数据摘要

产品概述

描述

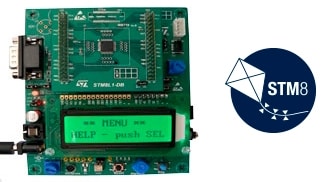

The STM8L101-EVAL is composed of two boards, a motherboard and a daughterboard. The STM8L1/L2 motherboard is called MB709. It includes all peripherals which are connected to the MCU on the daughterboard and connects to the daughterboard via two 36-pin connectors. The STM8L1 daughterboard is called MB710 and has an STM8L101 MCU.

The motherboard and daughterboard are a complete development platform for the STM8L101 microcontroller with comparator, I2C, SPI, USART and SWIM debugging support.

The full range of hardware features on the STM8L101-EVAL helps you to evaluate all peripherals (micro SD Card, USART, EEPROM, LCD, for example) and develop your own applications.

  • 所有功能

    • 5 V power jack supply
    • Audio play
    • Micro SD Card™
    • 64 Kbit I2C EEPROM
    • One channel of RS-232 communication
    • Bi-color LED
    • Economic analog voltage measurement based on comparator
    • SWIM debug support
    • 122 x 32 dot-matrix serial interface LCD module
    • Joystick with 4-direction control and selector
    • Reset and User button
    • 3 LEDs
    • Extension connector for daughterboard
    • One 10 K potentiometer

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 符合RoHS级别 材料声明**
STM8L101-EVAL
NRND
Ecopack1

STM8L101-EVAL

Package:

Ecopack1

Material Declaration**:

Marketing Status

NRND

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
Specific features
WEEE Compliant
核心产品
STM8L101-EVAL
Available at distributors

经销商的可用性 STM8L101-EVAL

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

STM8L101-EVAL NRND

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

STM8L101-EVAL

供应商:

ST

Specific features:

-

WEEE Compliant:

true

核心产品:

STM8L101K3
