产品概述
主要优势
支持NeoChrom VG GPU
新处理单元完全集成到X-CUBE-TOUCHGFX中，可优化翻转、旋转、缩放等矢量图形和动画的渲染效果，确保每秒帧数得到极大提升。
描述

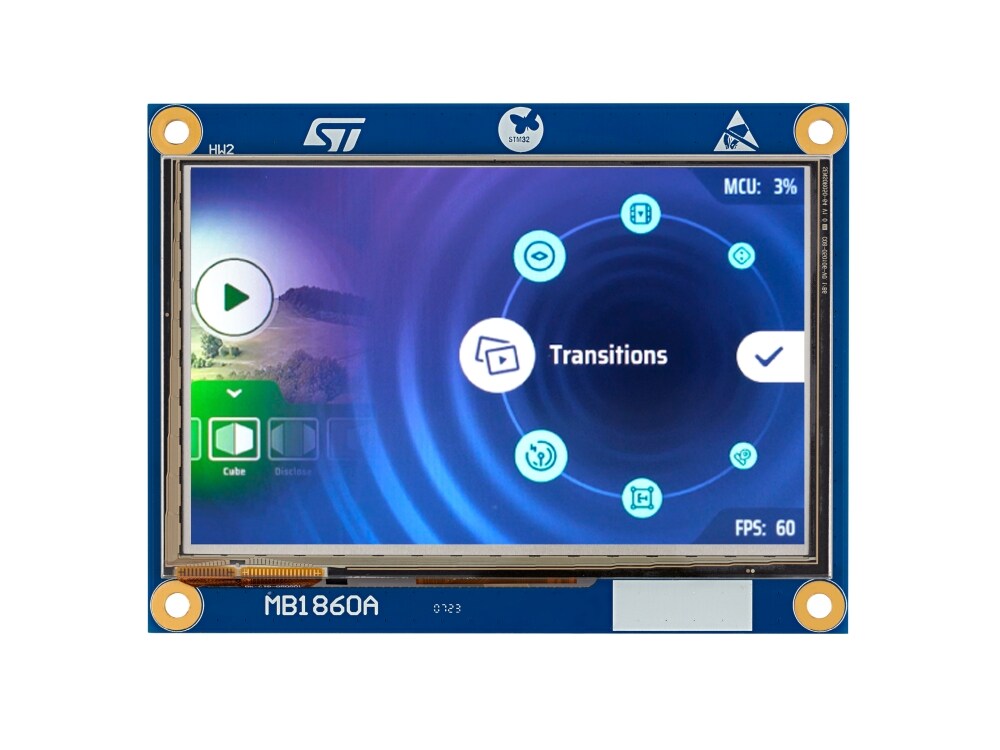

The STM32U5G9J-DK2 Discovery kit is a complete demonstration and development platform for the STM32U5G9ZJT6Q microcontroller, featuring an Arm® Cortex®‑M33 core with Arm® TrustZone®.
Leveraging the innovative ultra-low power-oriented features, 3 Mbytes of embedded SRAM, 4 Mbytes of embedded flash memory, and rich graphics features, the STM32U5G9J-DK2 Discovery kit enables users to prototype applications with state-of-the-art energy efficiency, as well as providing stunning and optimized graphics rendering with the support of a 2.5D Neo-Chrom accelerator, Chrom-ART Accelerator, and Chrom-GRC™ MMU.
The STM32U5G9J-DK2 Discovery kit integrates a full range of hardware features that help the user evaluate all the peripherals, such as a 5" RGB 800x480 pixels TFT colored LCD module with a 24‑bit RGB interface and capacitive touch panel, USB Type-C® HS, Octo‑SPI flash memory device, ARDUINO®, and STLINK-V3EC (USART console).
The STM32U5G9J-DK2 Discovery kit integrates an STLINK-V3EC embedded in-circuit debugger and programmer for the STM32 microcontroller with a USB Virtual COM port bridge and comes with the STM32CubeU5 MCU Package, which provides an STM32 comprehensive software HAL library as well as various software examples.
-
所有功能
- Ultra-low-power STM32U5G9ZJT6Q microcontroller based on the Arm® Cortex®‑M33 core with Arm® TrustZone®, featuring 4 Mbytes of flash memory, 3 Mbytes of SRAM, and SMPS, in an LQFP144 package
- 5" 800 × 480 pixels TFT LCD module with 16.7M color depth, parallel RGB interface, and capacitive touch panel
- USB Type-C® with USB 2.0 high-speed interface, UCPD Sink only
- Low-power system designed for VDD at 3.3 V only
- 1-Gbit Octo‑SPI flash memory
- Two user LEDs
- User and reset push-buttons
- Board connectors:
- ST-LINK USB Type-C®
- User USB Type-C®
- Arm® Cortex® MIPI10 connector (SWD/JTAG/trace)
- Tag‑Connect™ 10-pin footprint
- ARDUINO® Uno V3 expansion
- One double-row 2.54 mm pitch expansion connector for additional peripherals prototyping
- On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeU5 MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
您可能还会喜欢...
精选 视频
在STM32U5G9上进行的图形演示，展示了嵌入式NeoChromVG GPU处理矢量图形和纹理映射的能力，以及使用JPEG编解码器进行视频回放的效果。显示800x480 16位颜色深度，内部RAM中有两个帧缓冲区。
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (4)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 2.1 | 06 Dec 2024 | 06 Dec 2024 | |
| ZIP | 2.0 | 15 Oct 2024 | 15 Oct 2024 | |
| ZIP | 1.0 | 29 Nov 2023 | 29 Nov 2023 | |
| ZIP | 1.0 | 29 Nov 2023 | 29 Nov 2023 |
物料清单 (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 2.0 | 15 Oct 2024 | 15 Oct 2024 | |
| ZIP | 1.0 | 29 Nov 2023 | 29 Nov 2023 |
Schematic Pack (2)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 31 Jan 2024 | 31 Jan 2024 | ||
| 1.0 | 29 Nov 2023 | 29 Nov 2023 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| STM32U5G9J-DK2 | 批量生产 | Ecopack1 | |
STM32U5G9J-DK2
Package:
Ecopack1Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | Specific features | WEEE Compliant | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STM32U5G9J-DK2 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
|
STM32U5G9J-DK2 批量生产
