STM32U083C-DK

批量生产
Design Win

Discovery kit with STM32U083MC MCU

下载数据摘要 Order Direct

产品概述

主要优势

节约能源

  • 业内出众的静态消耗。
  • 多种超低功耗模式提供更大的灵活性

出色的兼容性

  • 受益于STM32开发生态系统
  • 与多款STM32产品引脚兼容

性价比高

  • 高度集成降低了BOM成本。
  • 价格更具吸引力。

描述

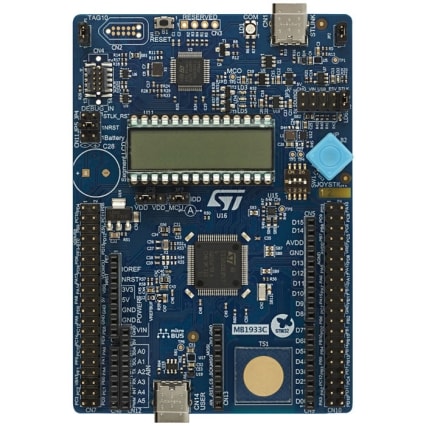

The STM32U083C-DK Discovery kit is a complete demonstration and development platform for the STM32U083MCT6 microcontroller. It is used as a reference design for the user application development before porting to the final product.

The full range of hardware features on the board helps the user to evaluate all the peripherals (USB FS device, segment LCD, touchkey, temperature sensor, and others) and to develop applications. The ARDUINO® Uno V3, mikroBUS™, and extension connectors provide easy connection to extension shields or daughterboards for specific applications.

The STM32U083C-DK Discovery kit does not require any separate probe as it integrates the STLINK-V2EC debugger/programmer. It is operated by plugging it into a PC through a standard USB Type-A or USB Type-C® to USB Type-C® cable.

  • 所有功能

    • Ultra-low-power STM32U083MC microcontroller based on the Arm® Cortex®‑M0+ core, featuring 256 Kbytes of flash memory and 40 Kbytes of SRAM in an LQFP80 package
    • 4×24-segment LCD
    • Three user LEDs
    • Reset push-button
    • User joystick
    • Touchkey
    • Temperature sensor
    • Board connectors:
      • ST-LINK USB Type-C® connector
      • User USB Device with USB Type-C® connector
      • mikroBUS™ connectors
      • MIPI® debug in connector (Arm® Cortex® 10‑pin 1.27 mm‑pitch debug connector over STDC14 footprint)
      • Extension connectors for full access to all STM32 I/Os
      • VBAT dedicated connector provides the capability to power the board on a battery
    • Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
    • VDD power supply at 1.8 or 3.3 V by step-down converter
    • On-board STLINK-V2EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

您可能还会喜欢...

质量与可靠性

产品型号 Marketing Status 符合RoHS级别 材料声明**
STM32U083C-DK
批量生产
Ecopack1

STM32U083C-DK

Package:

Ecopack1

Material Declaration**:

Marketing Status

批量生产

RoHS Compliance Grade

Ecopack1

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持

样片和购买

Swipe or click the button to explore more details Don't show this again
产品型号
供货状态
Budgetary Price (US$)*/Qty
从ST订购
Order from distributors
包装类型
RoHS
Country of Origin
ECCN (US)
ECCN (EU)
供应商
Specific features
WEEE Compliant
核心产品
STM32U083C-DK
Available at distributors

经销商的可用性 STM32U083C-DK

代理商名称
地区 库存 最小订购量 第三方链接

代理商库存报告日期:

无法联系到经销商,请联系我们的销售办事处

STM32U083C-DK 批量生产

Budgetary Price (US$)*/Qty:
-
包:
包装类型:
RoHS:
Country of Origin:
ECCN (US):
ECCN (EU):

产品型号:

STM32U083C-DK

供应商:

ST

Specific features:

-

WEEE Compliant:

true

核心产品:

STM32U083MC

代理商名称

代理商库存报告日期:

Swipe or click the button to explore more details Don't show this again

(*) 建议转售单价(美元)仅用于预算用途。如需以当地货币计价的报价,请联系您当地的 ST销售办事处 或我们的 经销商
