产品概述
描述

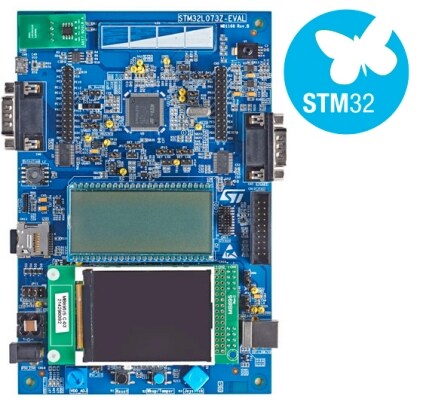

The STM32L073Z-EVAL Evaluation board is designed as a complete demonstration and development platform for the STMicroelectronics Arm® Cortex®-M0+ core-based STM32L073VZT6 microcontroller with three I2Cs, two SPIs, four USARTs, one UART, one 12-bit ADC, two 12-bit DACs, LCD driver, up to 192-Kbyte flash memory, 20-Kbyte RAM, 6-Kbyte EEPROM, touch sensing, USB FS, LCD controller, SWD debugging support.
The full range of hardware features on the board helps the user to evaluate all peripherals (USB FS, RS-232, USART, 12-bit ADC and DAC, color TFT LCD, LCD segments, low-power UART, IrDA, microSD™ card, touch-sensing slider, pressure measurement, temperature measurement, LC sensor metering) and to develop applications. The extension headers offer the possibility to connect a daughterboard or a wrapping board for a specific application.
An ST-LINK/V2-1 is integrated on the board as an embedded in-circuit debugger and programmer for the STM32 MCU and USB Virtual COM port bridge.
-
所有功能
- STM32L073VZT6 ultra-low-power Arm® Cortex® core-based microcontroller featuring 192 Kbytes of flash memory and 20 Kbytes of RAM in an LQFP100 package
- Selectable MCU voltage: 3.3 V or adjustable from 1.71 V to 3.6 V
- 2.8-inch color TFT LCD with resistive touch panel
- LCD 40 × 8 segments
- USB 2.0 FS
- IrDA transceiver
- Pressure sensor
- LC sensor metering
- Touch-sensing linear sensor
- User and reset push-buttons
- 4-direction joystick with selection button
- On-board current measurement
- Board connectors:
- 2× RS-232 with DB9
- USB with Micro-B
- microSD™ card
- RF-EEPROM daughterboard expansion
- Extension for daughterboard or wrapping board
- Four 5 V power supply options: power jack, ST-LINK USB connector, user USB FS connector, or daughterboard
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeL0 MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
