产品概要
描述
STKIT-NBIOTNFC is a reference bundle that describes the hardware configuration required by the MQTT NFC asset tracking application, which is part of the STSW-NBIOTV1 software package.

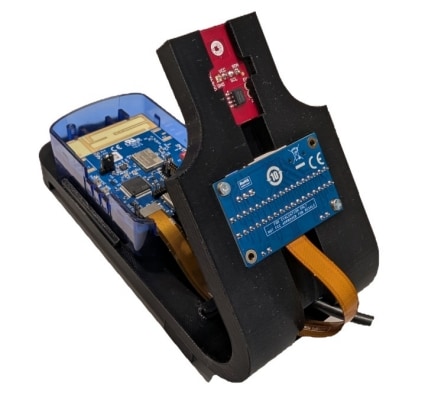

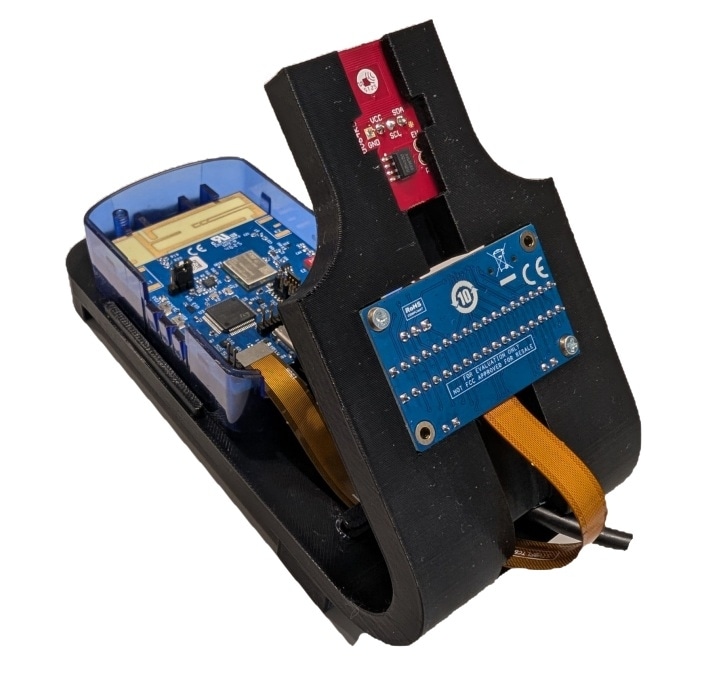

The reference configuration combines the STEVAL-NBIOTV1 NB-IoT evaluation platform, the STEVAL-C34ADPTK1 C34 connector breakout expansion board kit, and the ANT7-T-25DV64KC NFC antenna reference board.
This hardware bundle is supposed to work with the STSW-NBIOTV1 software package, which provides the firmware and software components required to run the MQTT NFC asset tracking application.
The application uses the ST25DV64KC NFC tag to store device-specific TLS credentials.
After the tag is provisioned with an NFC-capable phone, the firmware running on the STEVAL-NBIOTV1 reads the certificate and private key through I2C, imports them into the ST87M01 secure profile, and publishes sensor telemetry to the STAssetTracking dashboard through a TLS-secured MQTT connection.
-
性能一览
- Complete three-board reference configuration for the MQTT NFC asset tracking application
- STEVAL-NBIOTV1 NB-IoT evaluation platform and reference design featuring:
- STM32U585RI Arm Cortex®-M33 microcontroller
- ST87M01 low-power NB-IoT industrial module with GNSS capability
- Embedded NB-IoT and GNSS antennas
- Onboard motion, pressure, temperature, and humidity sensors
- STEVAL-C34ADPTK1 C34 connector breakout expansion board kit featuring:
- STEVAL-C34ADPT2 adapter board with all C34 connector pins exposed
- STEVAL-FLTCB05 15 cm flex cable
- ANT7-T-25DV64KC NFC antenna reference board featuring:
- ST25DV64KC dual interface EEPROM
- 14 x 14 mm, 13.56 MHz dual-layer etched antenna
- I2C interface for firmware access and NFC interface for mobile provisioning
- Device TLS certificate and private key stored on the NFC tag and retrieved by the application through I2C
- TLS-secured MQTT telemetry published to the STAssetTracking dashboard over NB-IoT connectivity
