STEVAL-VP318L1F

批量生产
Design Win

15 V / 1.2 A SSR Flyback converter based on VIPer318L

下载数据摘要 Order Direct

产品概述

描述

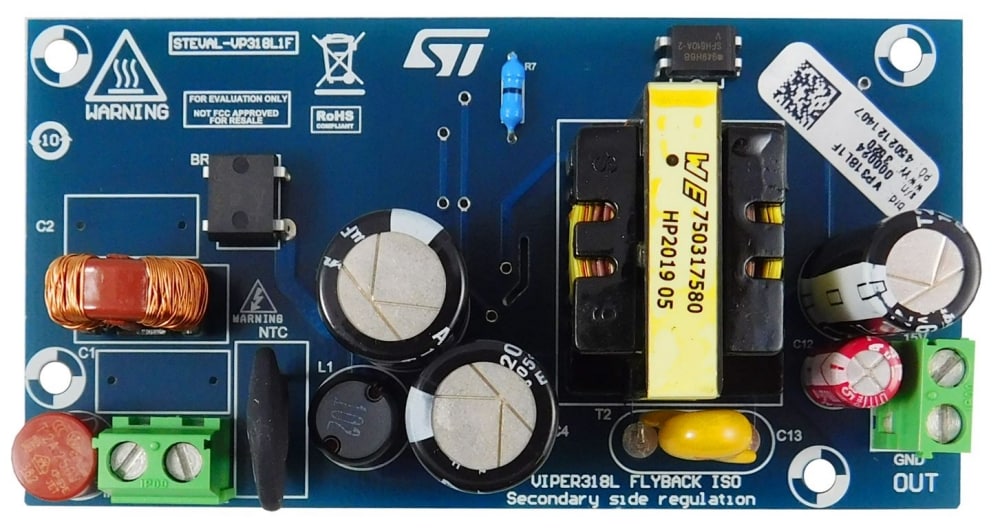

The STEVAL-VP318L1F reference design implements a 15 V - 18 W SSR isolated flyback converter developed for general purpose applications operating from 85 to 265 VAC.

The design is built around the new VIPer318L offline high-voltage converter from the VIPerPlus family with 800 V avalanche-rugged Power MOSFET, PWM current-mode control, fixed 60 kHz switching frequency with jittering to satisfy electromagnetic disturbance regulations, and burst mode for light load management.

The board features a small size, minimal BOM, high efficiency, low stand-by consumption and tight line and load regulation over the entire input and output range. Input overvoltage and undervoltage protections with separate and settable trigger thresholds are available on the respective OVP and UVP pins.

  • 所有功能

    • Universal input mains range: 85 – 265VAC
    • Frequency: 50-60Hz
    • Output voltage: 15 V
    • Output current: 1.2 A
    • Stand-by mains consumption: < 55mW at 230VAC
    • Average efficiency: > 85%
    • Tight line and load regulation over the entire input and output range
    • Meets IEC55022 Class B conducted EMI even with reduced EMI filter, thanks to the frequency jittering feature
    • RoHS compliant
    • WEEE compliant
