产品概要
描述

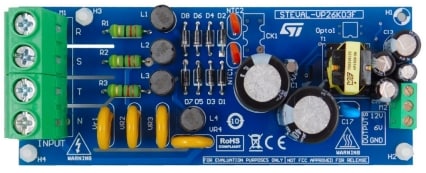

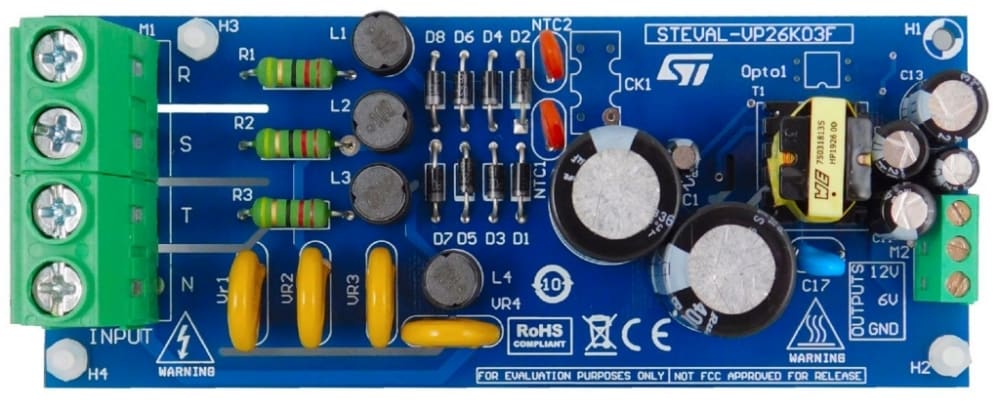

The STEVAL-VP26K03F evaluation board implements a double output isolated flyback with primary side regulation (PSR), specifically designed to supply smart meter and PLC systems.
The evaluation board has been developed using the VIPER267KDTR offline high-voltage converter, which features a 1050 V avalanche-rugged power section, PWM operation at 60 kHz with frequency jittering for lower EMI, current limiting with 700 mA fixed set point, on-board soft-start, safe auto-restart after fault and low standby power.
The power supply provides 12 V at 700 mArms (1 A peak) to the power line modem (PLM) and the analog circuitry, and 6 V at 200 mA to supply digital circuitry and other low voltage parts.
The power supply is designed to operate across a three-phase input mains from 50 to 290 VAC, but can also be connected to a single phase mains from 85 to 500 VAC.
-
性能一览
- Double output voltage: 12 V at 0.7 Arms (1 A peak) and 6 V at 200 mA
- Primary side regulation (PSR)
- Extended AC mains input voltage range: 85 to 498 VAC
- EMC with EN55022, EN61000, EN61000-4-4, EN61000-4-5, EN61000-4-6
- WEEE compliant
- RoHS compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.1 | 23 Sep 2019 | 23 Sep 2019 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.1 | 23 Sep 2019 | 23 Sep 2019 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.1 | 23 Sep 2019 | 23 Sep 2019 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-VP26K03F | Active 产品已量产 | CARD | Industrial | Ecopack2 | Yes | - | - | |
