STEVAL-VP26K01B

批量生产
Design Win

基于VIPER26K的15 V / 100 mA高压降压转换器参考设计

下载数据摘要 Order Direct

产品概述

描述

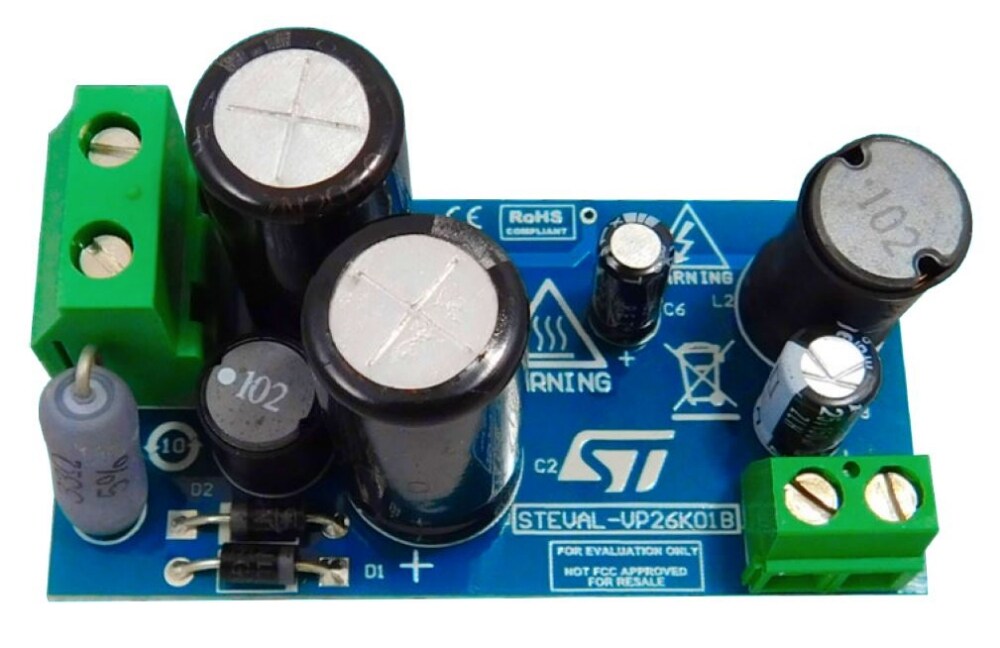

The STEVAL-VP26K01B reference design implements a 15 V-1.5 W buck converter for ultra-wide input voltage range auxiliary power supplies from 60 to 870 VDC or 90 to 600 VAC. The highly compact design offers tight line and load regulation over the entire input and output range.

The board represents a very low cost buck solution based on the new VIPER265KDTR offline high-voltage converter from the VIPerPlus family with 1050 V Power MOSFET and PWM current-mode control. It allows direct connection to ultra-wide range mains without the need for input an voltage limiter and/or stacked MOSFETs, therefore ensuring a minimal BOM.

The VIPER265KDTR operates at 60 kHz fixed frequency with frequency jittering to meet the EMC standard requirements.

  • 所有功能

    • Ultra-wide range: 90–600 VAC or 60–870 VDC
    • Frequency: 50-60 Hz
    • Output voltage: 15 V
    • Output current: 100 mA
    • Very compact size
    • Tight line and load regulation over the entire input and output range
    • Meets IEC55022 Class B conducted EMI even with a reduced EMI filter, thanks to the frequency jittering feature
    • RoHS compliant
