产品概述
描述

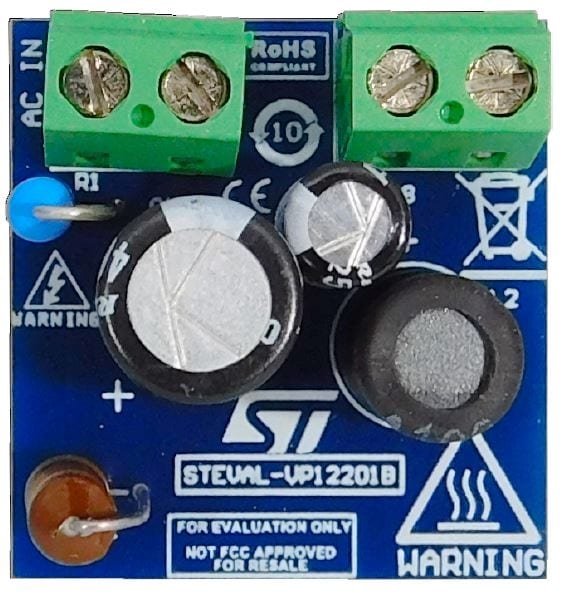

The STEVAL-VP12201B evaluation board implements a 15 V-3 W buck converter mains designed for general purpose applications, operating from 85 to 265 VAC.
It is built around the VIPER122 offline high-voltage converter of the VIPerPlus family with a 730 V Power MOSFET and PWM current mode control.
The STEVAL-VP12201B features include its small size and minimal BOM, high efficiency, low standby consumption, and tight line and load regulation over the entire input and output range.
Burst mode operation allows extremely low consumption under no load and reduces the average switching frequency to minimize all frequency related losses.
VIPER122 operates at a fixed frequency of 60 kHz with frequency jittering to meet electromagnetic disturbance standards.
-
所有功能
- Universal input mains range: 85–265 VAC
- Frequency: 50-60 Hz
- Output voltage: 15 V
- Output current: 200 mA
- Very compact size
- Stand-by mains consumption: < 30mW at 230 VAC
- Average efficiency: > 77%
- Tight line and load regulation over the entire input and output range
- Meets IEC55022 Class B conducted EMI even with reduced EMI filter, thanks to the frequency jittering feature
- WEEE compliant
- RoHS compliant
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 17 Sep 2019 | 17 Sep 2019 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 17 Sep 2019 | 17 Sep 2019 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 17 Sep 2019 | 17 Sep 2019 |
CAD Design Files (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 31 Jul 2023 | 31 Jul 2023 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-VP12201B | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-VP12201B
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | Board production status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-VP12201B | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
STEVAL-VP12201B 批量生产
