产品概要
描述

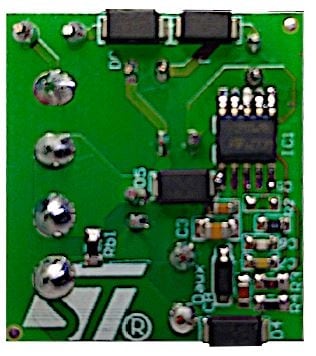

The STEVAL-VP013B1B is a compact and efficient solution for AC-DC power supplies, which can convert voltages from the main line down to 5 V output.
The board is highly efficient and features extremely low input power consumption under no load and light load conditions due to the low current consumption and low VCC voltage of the VIPer013B. Also, the pulse skip feature embedded in the IC eliminates inductor flux-runaway that is typically present during the startup phase of a buck converter.
-
性能一览
- Buck topology
- Input power consumption:
- 20 mW at 230 VAC in no load condition
- 400 mW at 230 VAC in 250 mW load
- Input voltage: 60 to 300 VAC
- Output voltage: 5 V
- Output current: 100 mA
- Switching frequency: 60 kHz with jittering
- Max ambient. temperature: 60 °C
- Automatic restart protections: OLP, short-circuit, VCC clamp, max duty cycle counter, thermal shutdown
- Pulse-skip protection to prevent flux-runaway
- Dimensions: 27 mm x 24 mm
- Meets IEC55022 Class B conducted EMI even with reduced EMI filter, thanks to the frequency jittering feature
- VIPer013B 800V avalanche rugged technology and embedded protections ensure enhanced system reliability
- RoHS compliant
特别推荐
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-VP013B1B | Active 产品已量产 | CARD | Industrial | Ecopack2 | Yes | - | - | |
STEVAL-VP013B1B
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
