产品概要
描述

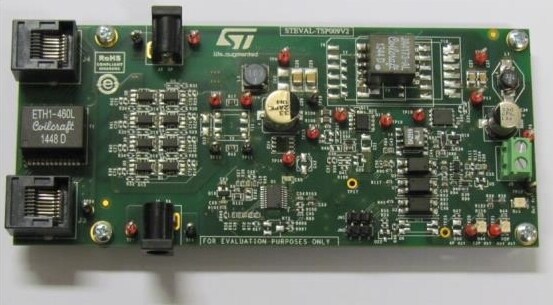

The STEVAL-TSP009V2 is a reference design for a PoE+, high-efficiency, 3.3 V - 6 A flyback converter based on the PM8803 PoE controller.
The PM8803 is a highly integrated device embedding an IEEE802.3at-compliant powered device (PD) interface together with a PWM controller and support for auxiliary sources.
The STEVAL-TSP009V2 reference design is based on an isolated flyback CCM converter featuring synchronous rectification with gate driver transformer.
-
性能一览
- IEEE 802.3at compliant PD interface
- Works with power supplied from Ethernet LAN cables or from local auxiliary sources
- Line input voltage range: 40 VDC to 60 VDC
- Output voltage: 3.35 VDC ± 5%
- Output current: 6 A
- Peak-to-peak output ripple: < 25 mV
- Efficiency DC-DC full-load: > 90%
- Overall peak efficiency: > 87%
- Transient response ΔVOUTPK-PK to 50% load step: < 250 mV
- ΔV in load line case: < 0.5%
- RoHs compliant
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-TSP009V2 | Active 产品已量产 | CARD | Industrial | Ecopack2 | Yes | - | - | |
STEVAL-TSP009V2
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
