产品概要
描述

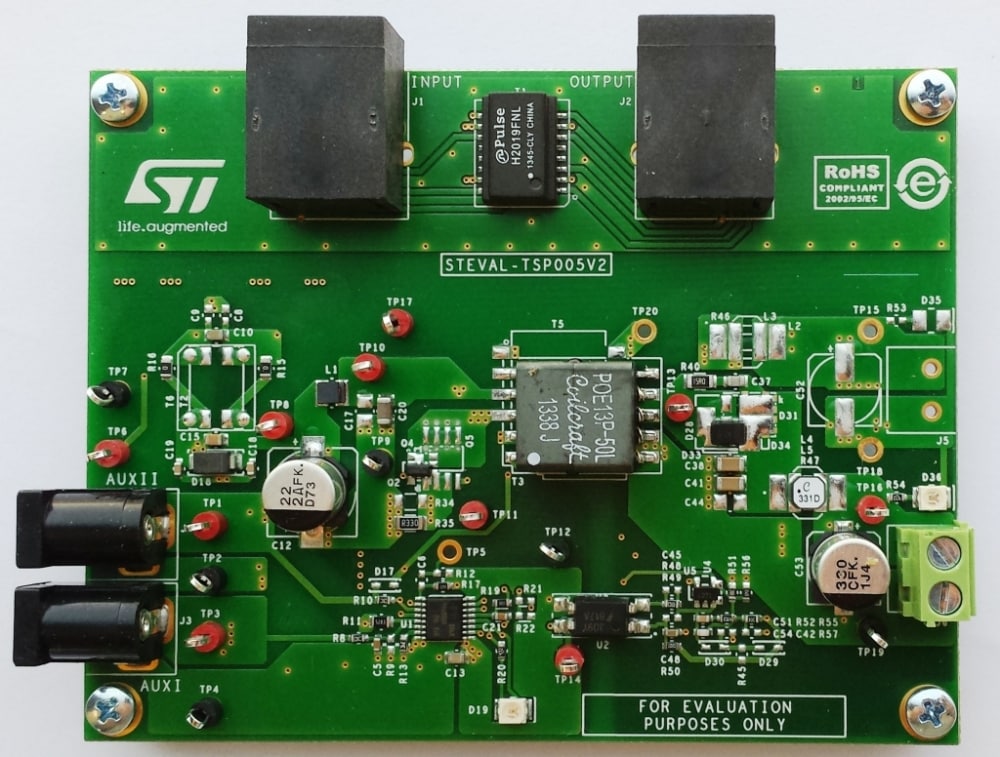

This document focuses on a reference design for a simple, low cost 5 V 2 A flyback converter based on the PM8800A device.
The PM8800A is a highly integrated device embedding an IEEE 802.3af compliant “Powered Device” (PD) interface together with a PWM controller.
It can be successfully used in all low power, low cost PoE applications.
-
性能一览
- IEEE 802.3af compliant PD interface
- Works with power supplied from Ethernet LAN cables or from local auxiliary sources
- Line input voltage range: 40 Vdc to 60 Vdc output voltage: 5 Vdc ± 5%
- Output current: 2 A
- Peak-to-peak output ripple: 30 mV
- Efficiency DC-DC full-load: > 86%
- Efficiency overall peak: > 84%
- Transient response ΔVoutpk-pkto 50% load step: < 300m Vpp
- ΔV in load line case: < 0.5%
特别推荐
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-TSP005V2 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
STEVAL-TSP005V2
Package:
CARDMaterial Declaration**:
