产品概述
描述

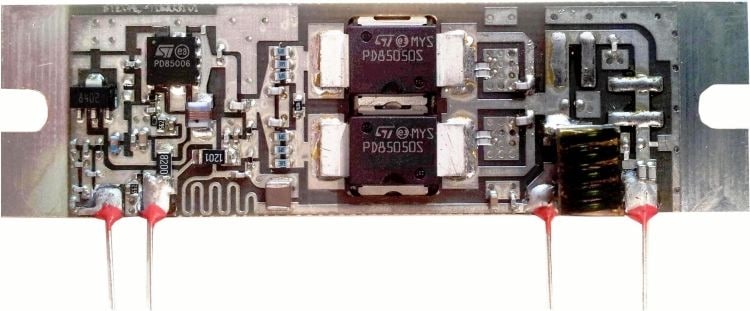

The STEVAL-TDR034V1 demonstration board is a 70 W hybrid RF power module for 12.5 V mobile radios that operate in the 380-470 MHz band.
This module is a 3-stage lineup power amplifier using the PD84002, the PD85006L-E and two PD85050S specially designed for broadband operation, which allows power control, high gain and high efficiency.
The board uses devices in plastic packages to ensure a high moisture sensitivity level.
For additional information, please refer to www.st.com/rf.
-
所有功能
- N-channel enhancement-mode lateral MOSFETs (IDD ≅ 0 @VDD = 12.5 V, VGG = 0 V)
- Pout > 70 W, ηtot = 50% (typ) @VDD = 12.5 V, VGG = 5 V, Pin = 5 dBm
- Broadband frequency range: 380-470 MHz
- High moisture sensitivity level
- Low power control current IGG = 3 mA (typ) @VGG = 5 V
- ESD protection
- Development kit available to aid in production or system integration.
- RoHS compliant
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | 材料声明** |
|---|---|---|---|---|---|---|
| STEVAL-TDR034V1 | 批量生产 | CARD | 工业 | Ecopack2 | - | |
STEVAL-TDR034V1
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
