产品概要
描述

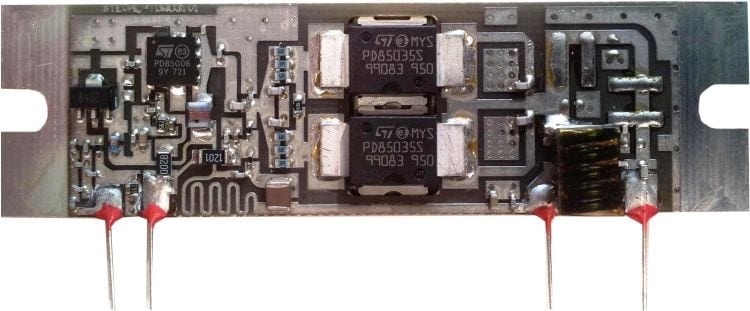

The STEVAL-TDR031V1 demonstration board is a 45 W hybrid RF power module for 12.5 V mobile radios that operate in the 380-490 MHz band.
This module is a 3-stage lineup power amplifier using the PD84002, the PD85006L-E and two PD85035S-E specially designed for broadband operation, allowing power control, high gain and high efficiency.
The board uses devices in plastic packages to ensure a moisture sensitivity level not achievable with similar modules using chip-on-board technology.
-
性能一览
- N-channel enhancement-mode lateral MOSFETs (IDD ≈ 0 @ VDD = 12.5 V, VGG = 0)
- Pout> 45 W, ƞtot> 50% @ VDD = 12.5 V, VGG = 5 V, Pin= 5 dBm
- Broadband frequency range: 380-490 MHz
- High moisture sensitivity level
- Low-power control current IGG = 2 mA (typ) @ VGG = 5 V
- ESD protection
- Development kit available to aid in production or system integration
- RoHS compliant
所有资源
| Resource title | 版本 | Latest update | Actions | Details | 下載 |
|---|
Board Manufacturing Specifications (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| ZIP | 1.0 | 01 Aug 2015 | 01 Aug 2015 |
BOM (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Schematic Pack (1)
| Resource title | 版本 | Latest update | Actions | Options | ||
|---|---|---|---|---|---|---|
| 1.0 | 01 Aug 2015 | 01 Aug 2015 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-TDR031V1 | Active 产品已量产 | CARD | Industrial | Ecopack2 | - | - | - | |
