产品概要
描述
The STEVAL-TDR030V1 demonstration board is designed for 2-way radio BTS and general wireless services at 28 V to 32 V. It uses two LET9060S LDMOS transistors.

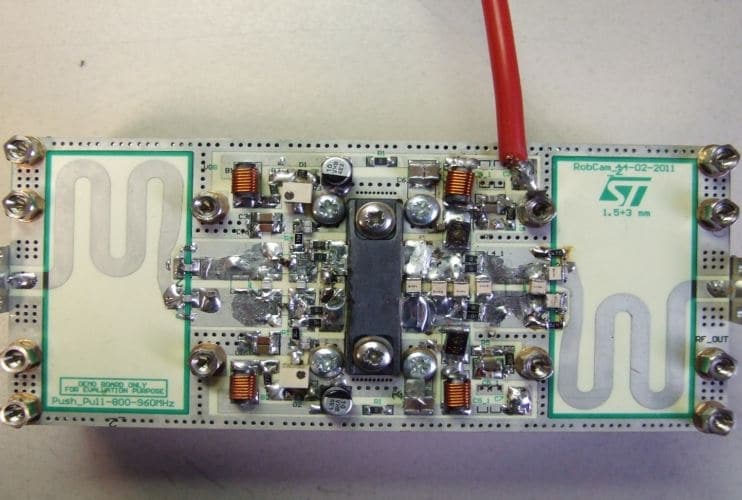

The demonstration board is a push-pull class AB power amplifier which uses a lumped L-C input/output network type on balanced microstrip lines.
A proper planar balun embedded on the PCB (patent pending) allows management of balanced versus unbalanced input/output signals.
For additional information regarding the LET9060S please refer to the device datasheet, available at www.st.com.
-
性能一览
- Excellent thermal stability
- Frequency: 760-870 MHz
- Supply voltage: 32 V
- Output power: 100 W
- Gain: 14 dB min
- Efficiency: 45% min
- Stability: load VSWR5:1 minimum
- BeO free amplifier
- RoHS compliant
