STEVAL-TDR006V1

已停产
Design Win

使用PD84001 + PD84008L-E + LPF的4 W / 400 - 470 MHz参考设计

下载数据手册

产品概述

描述

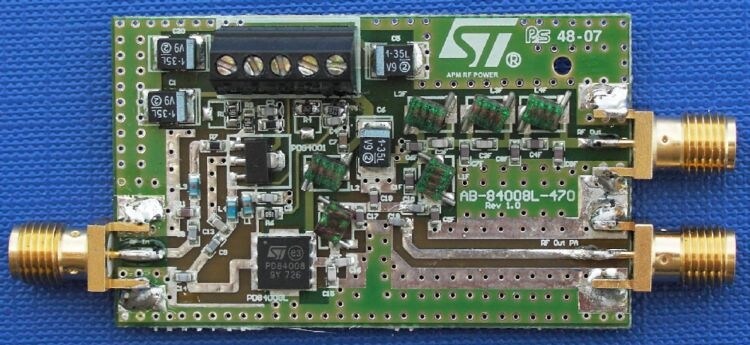

The STEVAL-TDR006V1 is a two stage RF power amplifier which includes a low pass output filter for harmonics rejection specifically designed for portable two-way UHF radio communication.

  • 所有功能

    • BeO-free amplifier
    • VAPC 5 V max
    • RoHS compliant
    • Harmonics level < -70 dBc
    • Input power < 10 dBm
    • Excellent thermal stability
    • Supply voltage: 7.2 V
    • Frequency: 400 - 470 MHz
    • Current < 1.4 A
    • Load mismatch 20:1
    • Output power: 4 W
