产品概要
描述

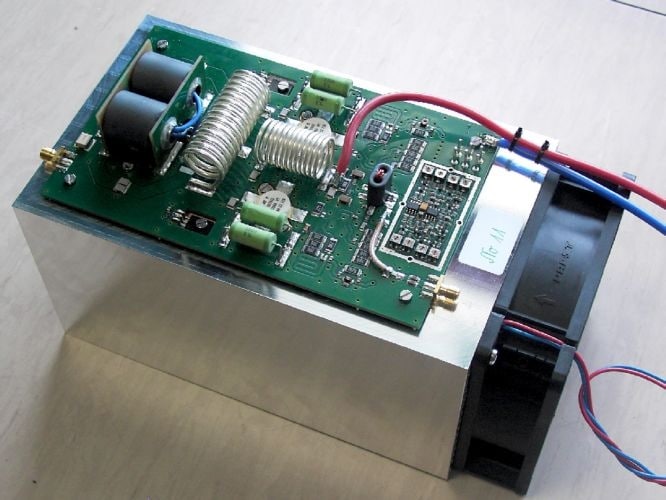

The STEVAL-TDR005V1 is a RF broadband power amplifier intended for linear or nonlinear operation over the band 1.8 to 54 MHz using 2x SD2943 gold metallized N-channel MOS fieldeffect transistors. The temperature compensating biasing circuit supports class B and class AB operation.
STEVAL-TDR005V1 is designed in cooperation with Specific RF Devices (Germany).
-
性能一览
- IMD at 300 WPEP < -24 dBc
- Efficiency: 55 % - 76 %
- Excellent thermal stability
- Supply voltage: 48 V
- Frequency: 1.8 - 54 MHz
- Input power 10 W max.
- Load mismatch: 3:1 all phases
- Output power: 450 W typ.
