The STEVAL-TDR001V1 is a two stage RF power amplifier which includes a low pass output filter for harmonics rejection specifically designed for portable two-way UHF radio communication.

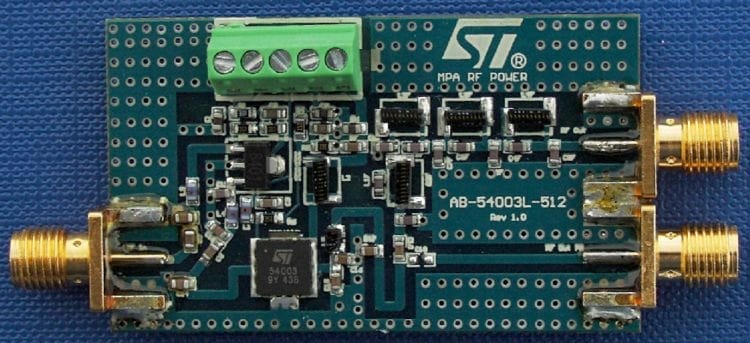

Board photo for STEVAL-TDR001V1 board

性能一览
Beo free amplifier

V_APC 5 V max

RoHS compliant

Harmonics level < -70 dBc

Input power < 10 dBm

Excellent thermal stability
Supply voltage: 7.2 V

Frequency: 380 - 512 MHz

Current < 1.6 A

Load mismatch 20:1

Output power: 4 W
