产品概述
描述

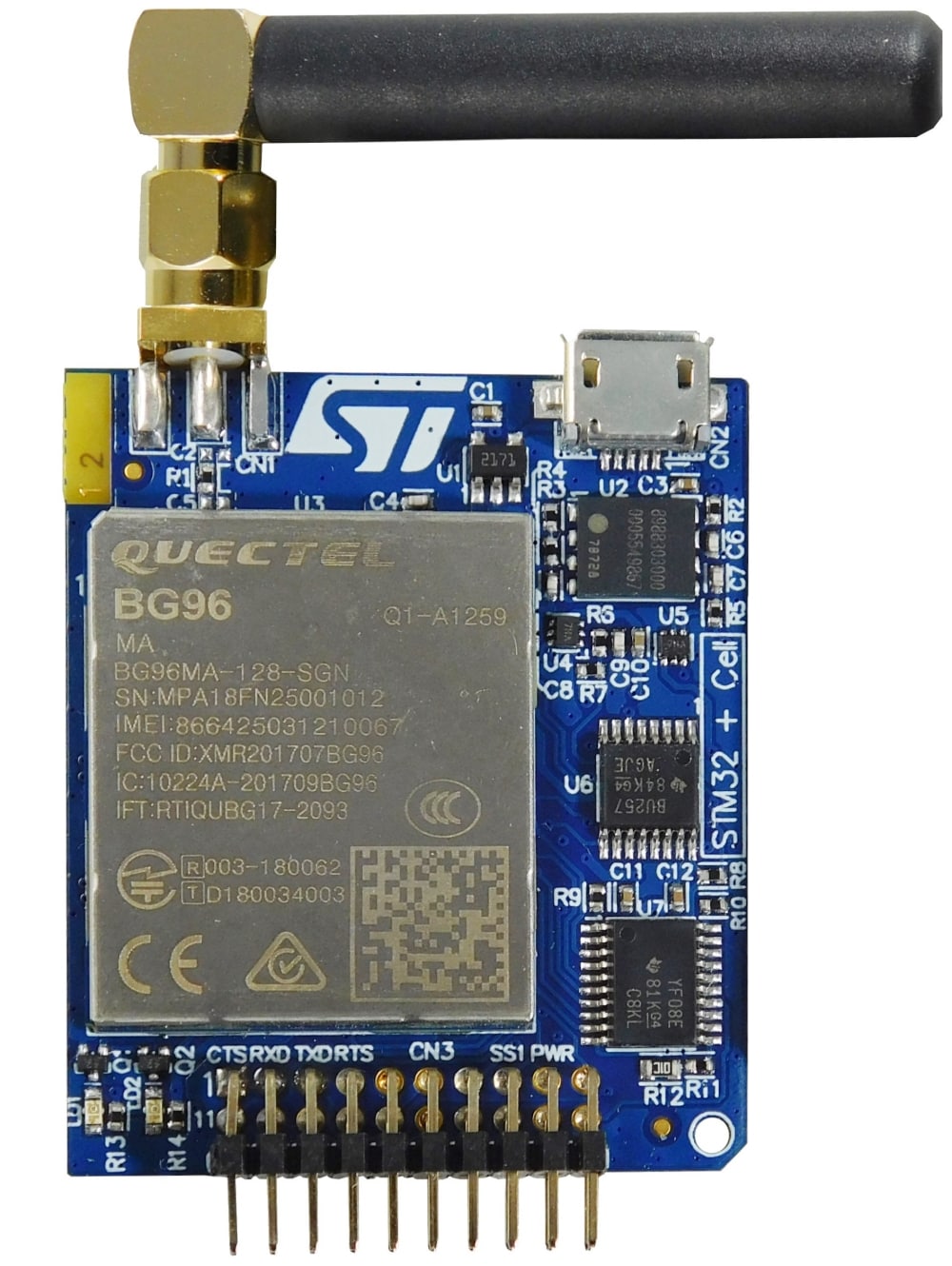

The STEVAL-STMODLTE expansion board adds LTE connectivity to evaluation boards hosting the STMod+ expansion connector. It embeds an LTE cellular modem and an eSIM with a worldwide coverage.
The expansion board can be used only with the furnished antenna and is compatible with all STMicroelectronics Discovery kits featuring an STMod+ connector, such as the STM32L496G-DISCO, and with any STMod+ compatible evaluation board.
The package, combined with any compatible evaluation board, represents an ideal development platform for cellular and cloud technology-based solutions.
-
所有功能
- LTE connectivity expansion for evaluation boards hosting the STMod+ connector
- Embedded Quectel BG96 FCC and IC certified LTE module (FCC ID: XMR201707BG96 and IC: 10224A-201709BG96)
- Modem reset red LED and modem signaling green LED
- ST Incard eSIM
- Switchable SIM interface, eSIM and MicroSIM
- Pulse SMA antenna for the following frequency ranges: 824/900/1800/1900/2100 MHz
- Modem firmware can be easily upgraded through the dedicated micro-B USB connector
您可能还会喜欢...
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 24 Nov 2020 | 24 Nov 2020 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 24 Nov 2020 | 24 Nov 2020 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 24 Nov 2020 | 24 Nov 2020 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-STMODLTE | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
